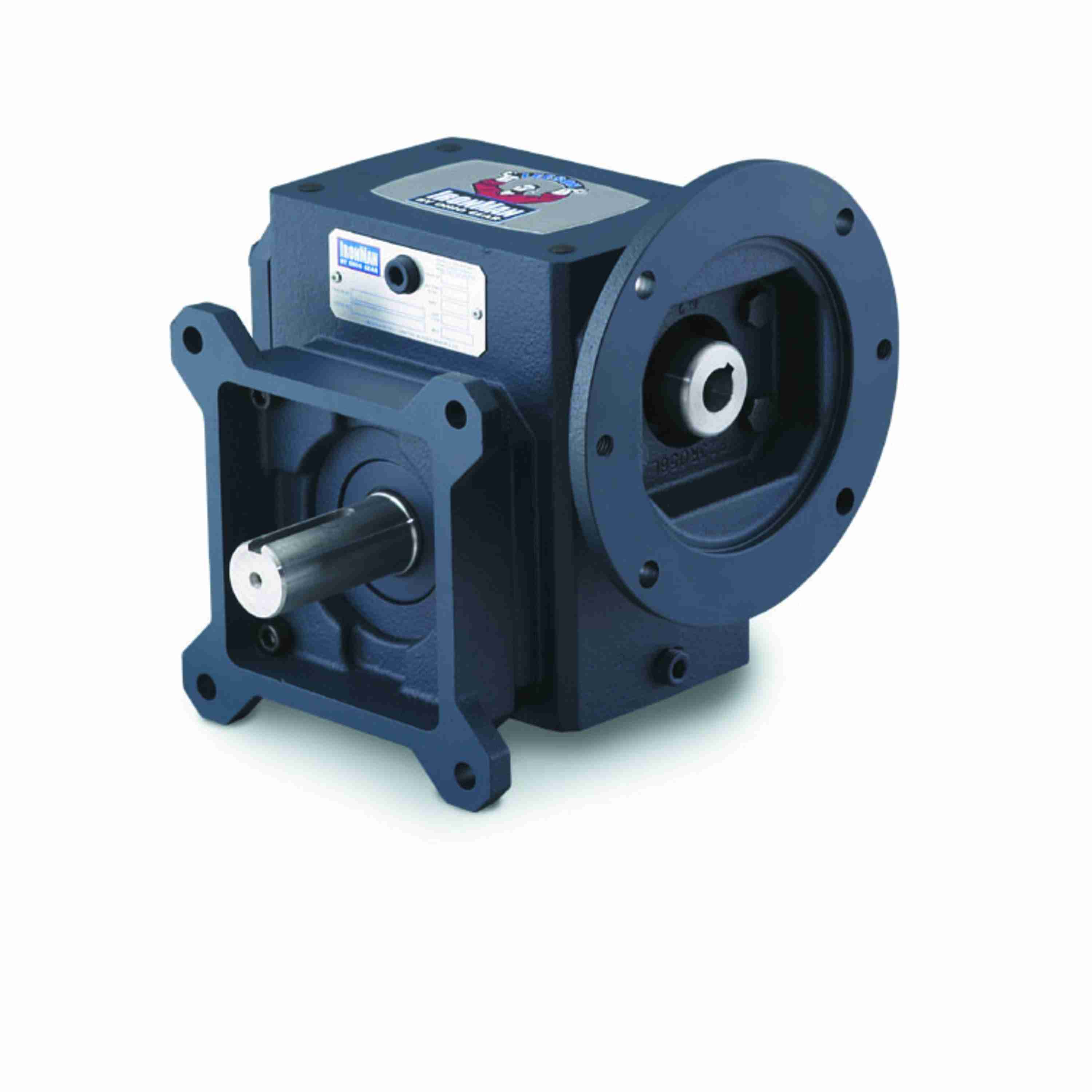

GROVE GEAR GR8155526.00 GR-FMQ815-5-LL-56 Worm Reducer, 5:1 Ratio, 0.625 Inch I.D, 0.75 Inch O.D, Right Angle Cast Iron
€682.98 /unit
Request a Quote
Payment
Payment
| Item | Reducer |
| Assembly | FMQ-LL |
| Center Distance | 1.54" |
| Frame | 56C |
| Gear Type | Worm |
| Housing Material | Cast Iron |
| Input Bore (c Face) | 5/8" |
| Input Dia. | 5/8" |
| Input Keyway Size | 3/16" x 1.38" |
| Input Keyway Size (c Face) | 3/16" x 3/32" |
| Input Quill Dia. | 5/8" |
| Input Rpm | 1750 RPM |
| Input Style | C Face Quill |
| Keyway Size | 3/16" x 3/32" |
| Max. Input Hp | 1.939 hp |
| No. Of Gear Reductions | 1 |
| Output Diameter | 3/4" |
| Output Hp | 1.794 hp |
| Output Key Size | 3/16" x 1.5" |
| Output Rpm | 350 RPM |
| Output Shaft | Shaft |
| Output Shaft Assembly Code | LL |
| Output Shaft Orientation | LL |
| Output Style | LL |
| Output Torque | 323 lbs.-in. |
| Overhung Load | 860 lbs. |
| Product Line | GR Series - Ironman Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reduction Type | Single |
| Series | GR Series |
| Series Style | GR-FMQ-LL |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Weight | 22 lbs. |
| Ship weight (kg) | 9.9 |
| Model | Price | |
|---|---|---|
| GR8150580.10 | €1,174.68 | |
| GR8150582.10 | €757.09 | RFQ
|
| GR8150531.10 | €800.85 | RFQ
|
| GR8150533.10 | €800.85 | RFQ
|
| GR8150534.10 | €800.85 | RFQ
|
| GR8150561.10 | €1,174.68 | |
| GR8150564.10 | €800.85 | RFQ
|
