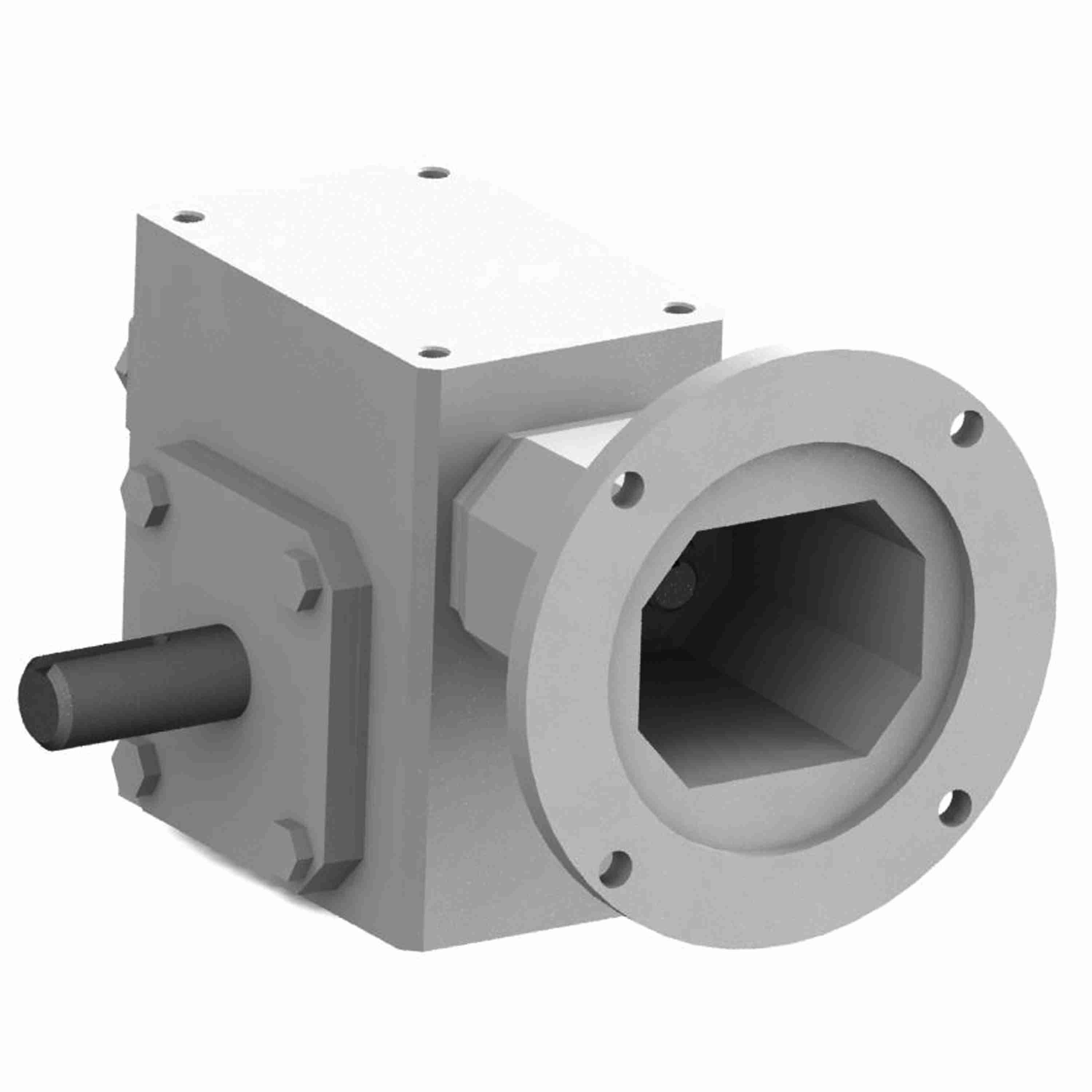

GROVE GEAR GR8155519.00 GR-WBM815-5-L-56 Worm Reducer, 5:1 Ratio, 0.625 Inch I.D, 0.75 Inch O.D, Cast Iron
Get it by Tuesday, Jun 17
€739.17 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Reducer |
| Assembly | WBM-L |
| Center Distance | 1.54" |
| Frame | 56C |
| Gear Type | Worm |
| Housing Material | Cast Iron |
| Input Bore (c Face) | 5/8" |
| Input Dia. | 5/8" |
| Input Keyway Size (c Face) | 3/16" x 3/32" |
| Input Rpm | 1750 RPM |
| Input Style | C Face Coupled |
| Max. Input Hp | 1.939 hp |
| Mounting Type | Base |
| No. Of Gear Reductions | 1 |
| Output Diameter | 3/4" |
| Output Hp | 1.794 hp |
| Output Key Size | 3/16" x 1.5" |
| Output Rpm | 350 RPM |
| Output Shaft | Shaft |
| Output Shaft Assembly Code | L |
| Output Shaft Direction | Left |
| Output Shaft Orientation | L |
| Output Style | L |
| Output Torque | 323 lbs.-in. |
| Overhung Load | 860 lbs. |
| Product Line | GR Series - Ironman Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reduction Type | Single |
| Series | GR Series |
| Series Style | GR-WBM-L |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Weight | 23 lbs. |
| Ship weight (kg) | 10.35 |
| Ship height (cm) | 26.67 |
| Ship length (cm) | 27.15 |
| Ship width (cm) | 23.01 |
| Model | Price | |
|---|---|---|
| GR8150580.10 | €1,174.68 | |
| GR8150582.10 | €757.09 | RFQ
|
| GR8150531.10 | €800.85 | RFQ
|
| GR8150533.10 | €800.85 | RFQ
|
| GR8150534.10 | €800.85 | RFQ
|
| GR8150561.10 | €1,174.68 | |
| GR8150564.10 | €800.85 | RFQ
|
