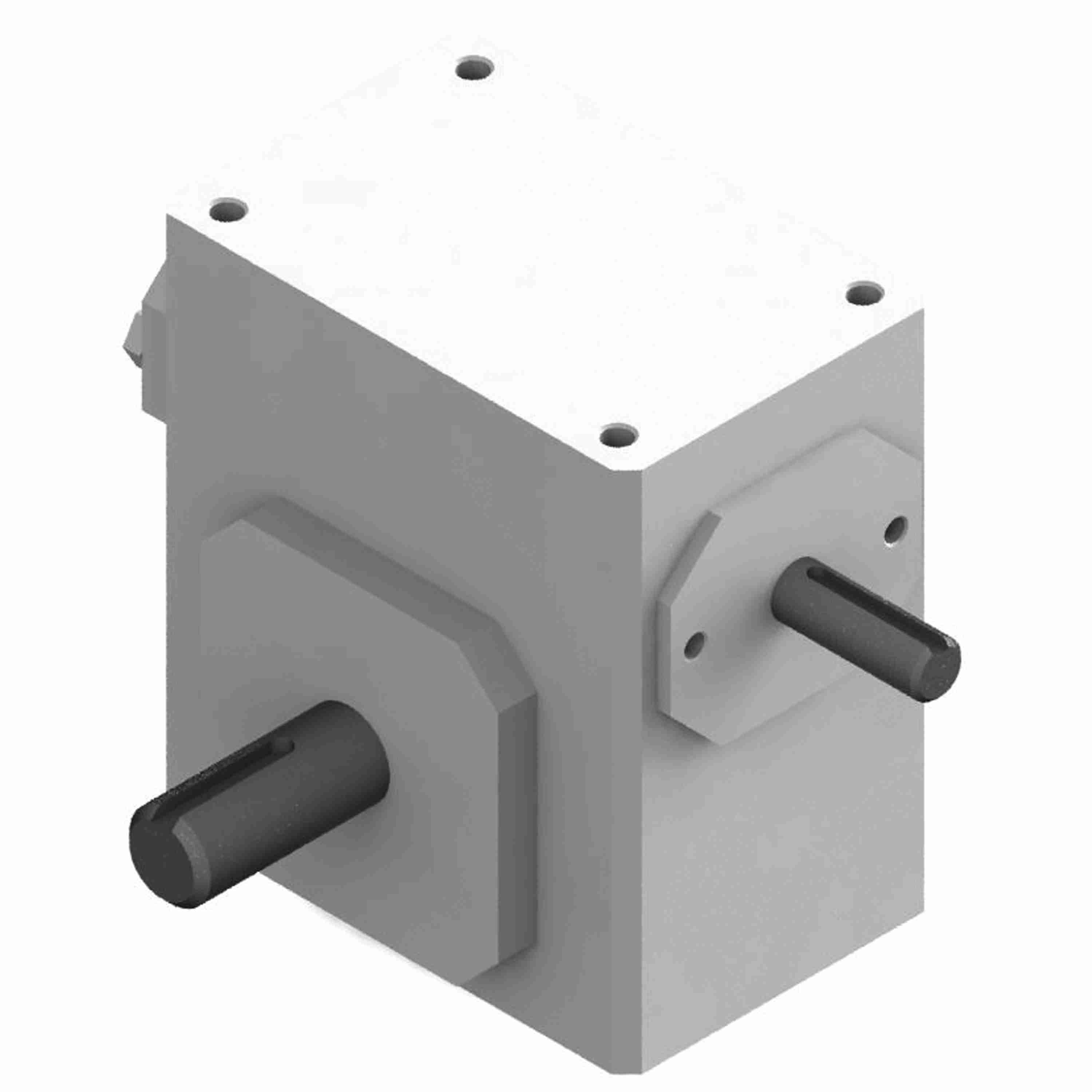

GROVE GEAR GR8135533.00 GR-WB813-60-L Reducer, Solid Input Shaft Solid Output Shaft Left Worm
Get it by Tuesday, Jun 17
€863.46 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Reducer |
| Assembly | WB-L |
| Center Distance | 1.33" |
| Gear Type | Worm |
| Gearbox Type | Worm |
| Housing Material | Cast Iron |
| Input Bore Size | 1/2" |
| Input Dia. | 1/2" |
| Input Keyway Size | 1/8" x 1" |
| Input Rpm | 1750 RPM |
| Input Style | Shaft |
| Input Type | Solid Shaft |
| Material | Cast Iron |
| Max Input Hp | 123/500 hp |
| Max. Input Hp | 0.246 hp |
| Mounting Type | Base |
| No. Of Gear Reductions | 1 |
| Output Diameter | 5/8" |
| Output Hp | 29/200 hp |
| Output Key Size | 3/16" x 1.5" |
| Output Rpm | 29 RPM |
| Output Shaft | Shaft |
| Output Shaft Assembly Code | L |
| Output Shaft Dia. | 5/8" |
| Output Shaft Direction | Left |
| Output Shaft Orientation | L |
| Output Shaft Type | Left Handed Shaft |
| Output Style | L |
| Output Torque | 313 lbs.-in. |
| Overhung Load | 700 lbs. |
| Product Line | GR Series - Ironman Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reduction Type | Single |
| Series | GR Series |
| Series Style | GR-WB-L |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Ships Factory Direct | No |
| Weight | 17 lbs. |
| Ship weight (kg) | 7.65 |
| Ship height (cm) | 26.67 |
| Ship length (cm) | 27.15 |
| Ship width (cm) | 23.01 |
| Model | Price | |
|---|---|---|
| GR8130562.10 | €753.13 | RFQ
|
| GR8130564.10 | €753.13 | RFQ
|
| GR8130565.10 | €1,105.65 | |
| GR8130567.10 | €753.13 | RFQ
|
| GR8130569.10 | €1,105.65 | |
| GR8130570.10 | €1,105.65 | |
| GR8130571.10 | €753.13 | RFQ
|
