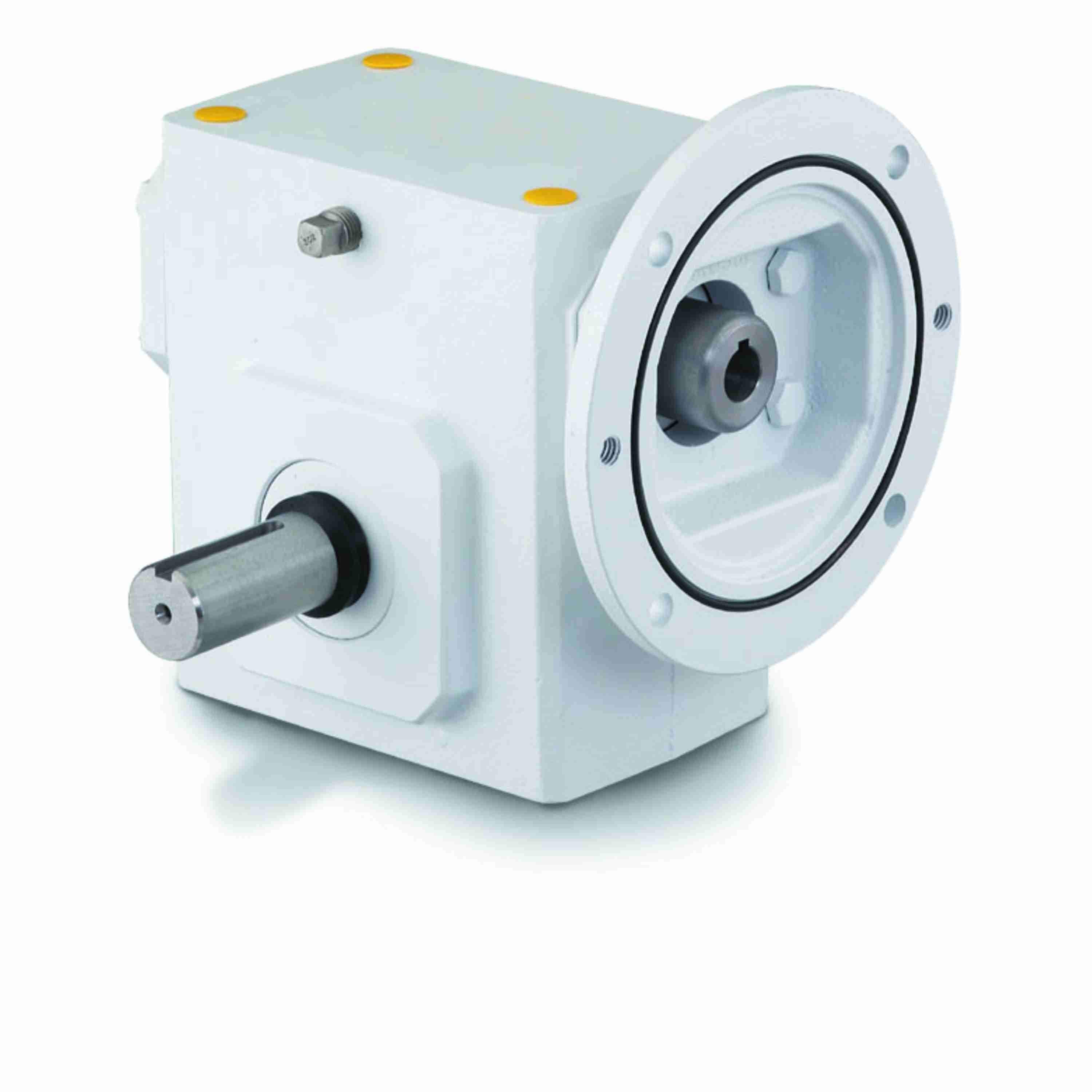

GROVE GEAR GR8133008.00 GR-WBMQ813-40-L-56 Worm Reducer, 40:1 Ratio, 0.625 Inch I.D, 0.625 Inch O.D, Cast Iron
Get it by Tuesday, Jun 17
€988.67 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Reducer |
| Assembly | WBMQ-L |
| Center Distance | 1.33" |
| Frame | 56C |
| Gear Type | Worm |
| Gearbox Type | Worm |
| Housing Material | Cast Iron |
| Input Bore (c Face) | 5/8" |
| Input Bore Size | 5/8" |
| Input Dia. | 5/8" |
| Input Keyway Size (c Face) | 3/16" x 3/32" |
| Input Quill Dia. | 5/8" |
| Input Rpm | 1750 RPM |
| Input Style | C Face Quill |
| Keyway Size | 3/16" x 3/32" |
| Material | Cast Iron |
| Max Input Hp | 329/1000 hp |
| Max. Input Hp | 0.329 hp |
| Mounting Type | Base |
| No. Of Gear Reductions | 1 |
| Output Diameter | 5/8" |
| Output Hp | 0.223 hp |
| Output Key Size | 3/16" x 1.5" |
| Output Rpm | 43 RPM |
| Output Shaft | Shaft |
| Output Shaft Assembly Code | L |
| Output Shaft Dia. | 5/8" |
| Output Shaft Direction | Left |
| Output Shaft Orientation | L |
| Output Shaft Type | Left Handed Shaft |
| Output Style | L |
| Output Torque | 322 lbs.-in. |
| Overhung Load | 700 lbs. |
| Product Line | GR Series - Ironman Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reduction Type | Single |
| Series | GR Series |
| Series Style | GR-WBMQ-L |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Ships Factory Direct | No |
| Tap Depth | 1/2" |
| Tap Size | 5/16"-18 |
| Thread Type | Coarse |
| Weight | 17 lbs. |
| Ship weight (kg) | 7.65 |
| Ship height (cm) | 26.67 |
| Ship length (cm) | 27.15 |
| Ship width (cm) | 23.01 |
| Model | Price | |
|---|---|---|
| GR8130562.10 | €753.13 | RFQ
|
| GR8130564.10 | €753.13 | RFQ
|
| GR8130565.10 | €1,105.65 | |
| GR8130567.10 | €753.13 | RFQ
|
| GR8130569.10 | €1,105.65 | |
| GR8130570.10 | €1,105.65 | |
| GR8130571.10 | €753.13 | RFQ
|
