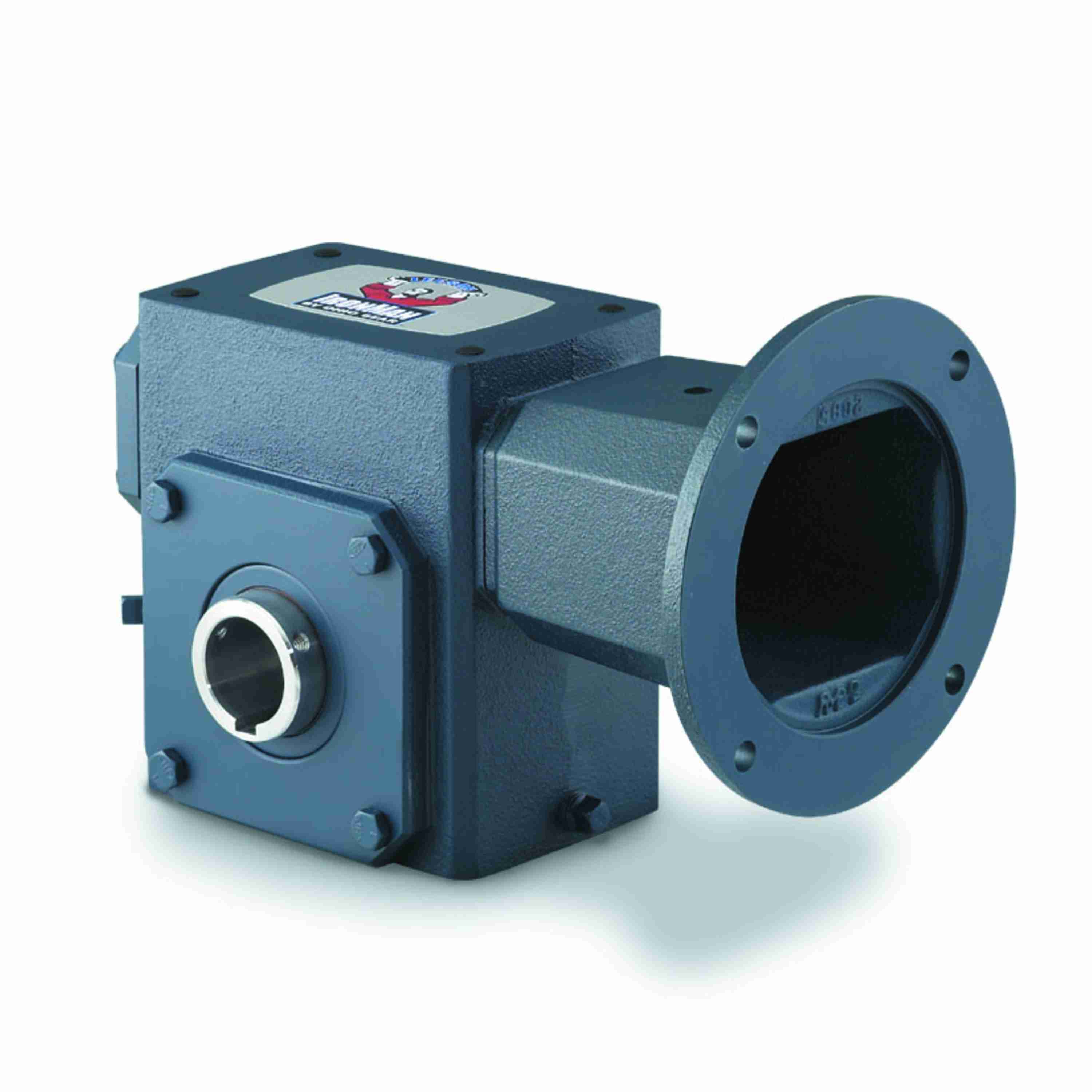

GROVE GEAR GR8130513.10 GR-HM813-5-H1-56-10 Worm Reducer, 5:1 Ratio, 0.5 Inch I.D, 0.625 Inch O.D, Cast Iron
Get it by Tuesday, Jun 17
€1,105.65 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Reducer |
| Assembly | HM-H1 |
| Bore Code | 10 |
| Center Distance | 1.33" |
| Frame | 56C |
| Gear Type | Worm |
| Gearbox Type | Worm |
| Housing Material | Cast Iron |
| Input Bore (c Face) | 5/8" |
| Input Bore Size | 5/8" |
| Input Dia. | 1/2" |
| Input Hp @ 1750 Rpm | 1 31/125 hp |
| Input Keyway Size | 1/8" x 1" |
| Input Keyway Size (c Face) | 3/16" x 3/32" |
| Input Rpm | 1750 RPM |
| Input Style | Flexible Coupling Input |
| Material | Cast Iron |
| Max Input Hp | 1 31/125 hp |
| Max. Input Hp | 1 31/125 hp |
| Mounting Type | Shaft Mount |
| No. Of Gear Reductions | 1 |
| Output Diameter | 5/8" |
| Output Hp | 1 79/500 hp |
| Output Key Size | 3/16" x 1.5" |
| Output Rpm | 350 RPM |
| Output Shaft | Hollow Bore |
| Output Shaft Assembly Code | H1 |
| Output Shaft Orientation | H1 |
| Output Shaft Thrust Rating | 827 |
| Output Shaft Type | Hollow Shaft |
| Output Style | H1 |
| Output Torque | 209 lbs.-in. |
| Product Line | GR Series - Ironman Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reduction Type | Single |
| Series | GR Series |
| Series Style | GR-HM-H1 |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Ships Factory Direct | No |
| Weight | 22 lbs. |
| Ship weight (kg) | 9.9 |
| Ship height (cm) | 26.67 |
| Ship length (cm) | 27.15 |
| Ship width (cm) | 23.01 |
| Model | Price | |
|---|---|---|
| GR8130514.10 | €1,105.65 | |
| GR8130515.10 | €1,105.65 | |
| GR8130517.10 | €1,105.65 | |
| GR8130520.10 | €1,105.65 |
