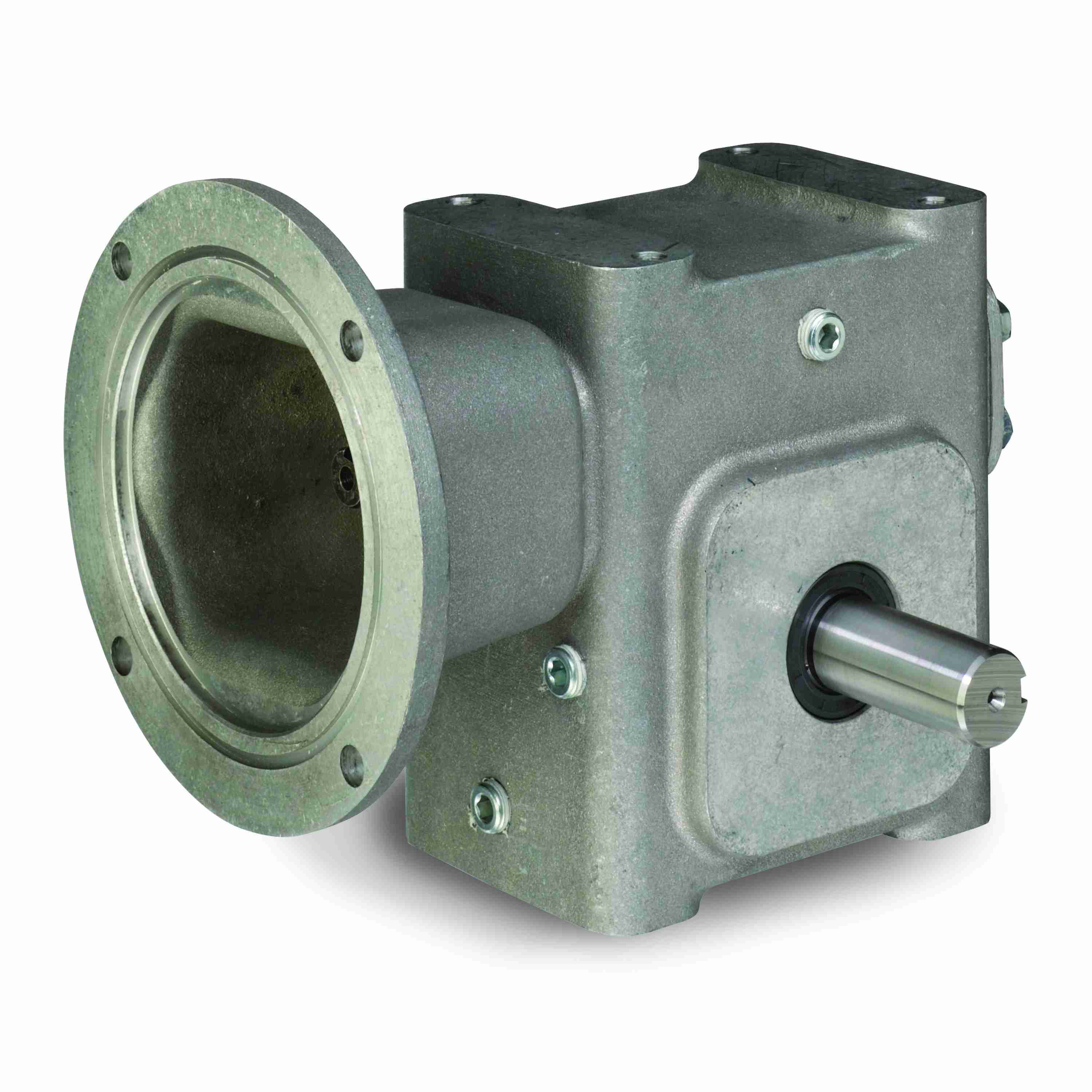

GROVE GEAR EL8420201.00 EL-BM842-50-R-250 Worm Reducer, 50:1 Ratio, 1.625 Inch I.D, 1.75 Inch O.D, Aluminum
Get it by Tuesday, Jun 17
€4,124.75 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Reducer |
| Assembly | BM-R |
| Center Distance | 4 1/4" |
| Frame | 250TC |
| Gear Type | Worm |
| Gearbox Type | Worm |
| Housing Material | Aluminum |
| Input Bore (c Face) | 1 5/8" |
| Input Bore Size | 1 5/8" |
| Input Dia. | 1 5/8" |
| Input Keyway Size | 3/8" x 3/16" |
| Input Rpm | 1750 RPM |
| Input Style | C Face Coupled |
| Material | Aluminum |
| Max Input Hp | 4 389/1000 hp |
| Max. Input Hp | 4.389 hp |
| Mounting Type | Base |
| No. Of Gear Reductions | 1 |
| Output Diameter | 1 3/4" |
| Output Hp | 3.426 hp |
| Output Key Size | 3/8" x 2.5" |
| Output Rpm | 35 RPM |
| Output Shaft | Shaft |
| Output Shaft Assembly Code | R |
| Output Shaft Dia. | 1 7/8" |
| Output Shaft Direction | Right |
| Output Shaft Orientation | R |
| Output Shaft Type | Right Handed Shaft |
| Output Style | R |
| Output Torque | 6170 lbs.-in. |
| Overhung Load | 3730 lbs. |
| Product Line | EL Series - Aluminum Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reduction Type | Single |
| Series | EL Series |
| Series Style | EL-BM-R |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Ships Factory Direct | No |
| Weight | 102 lbs. |
| Ship weight (kg) | 45.9 |
| Ship height (cm) | 44.45 |
| Ship length (cm) | 101.6 |
| Ship width (cm) | 93.98 |
| Model | Price | |
|---|---|---|
| EL8420049.00 | €4,124.75 | |
| EL8420050.00 | €4,124.75 | |
| EL8420054.00 | €4,124.75 | |
| EL8420055.00 | €4,124.75 | |
| EL8420056.00 | €4,124.75 | |
| EL8420059.00 | €4,124.75 | |
| EL8420060.00 | €4,124.75 |
