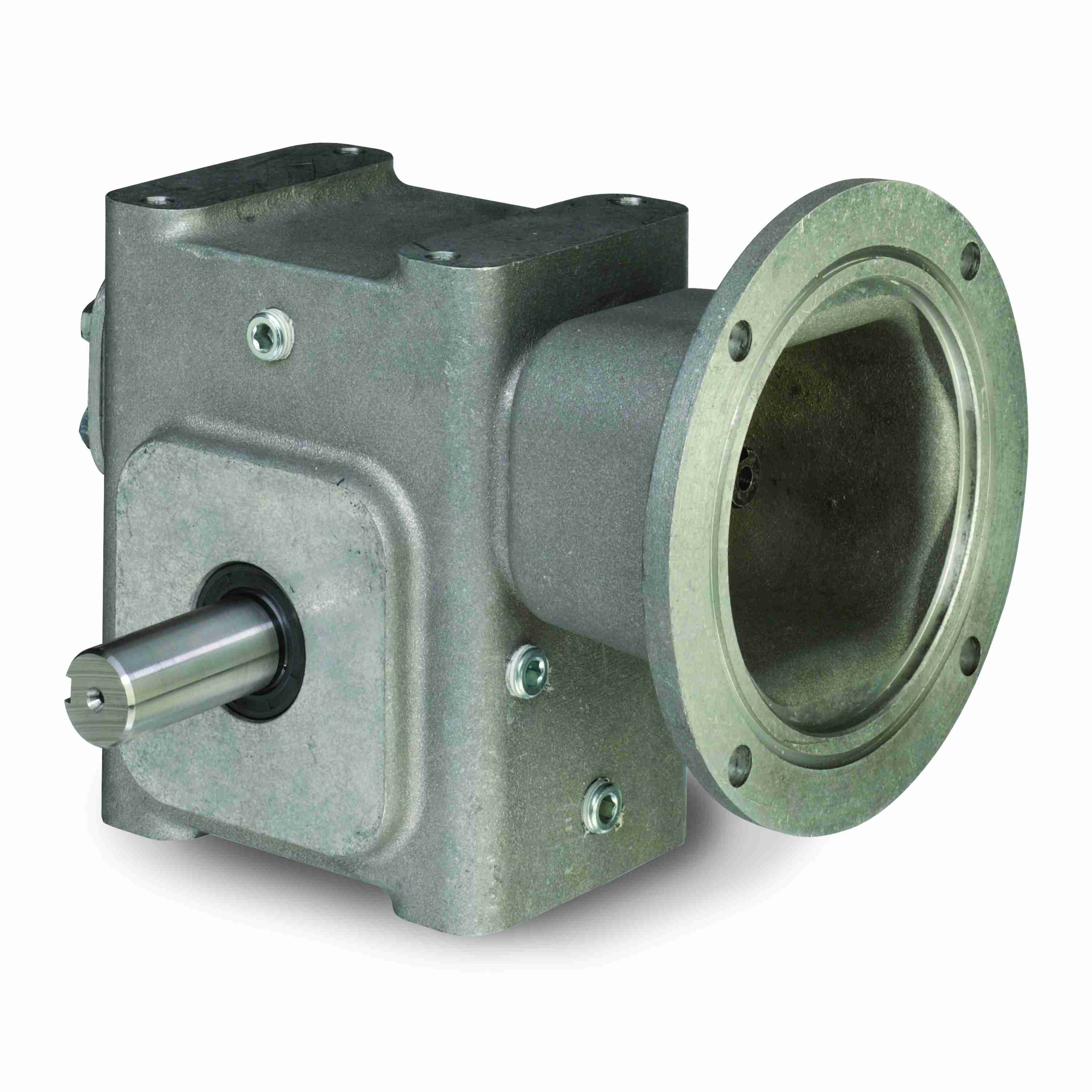

GROVE GEAR EL8240047.00 EL-BM824-80-L-56 Worm Reducer, 80:1 Ratio, 0.625 Inch I.D, 1.125 Inch O.D, Aluminum
Get it by Tuesday, Jun 17
€1,545.56 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Reducer |
| Assembly | BM-L |
| Center Distance | 2.38" |
| Frame | 56C |
| Gear Type | Worm |
| Gearbox Type | Worm |
| Housing Material | Aluminum |
| Input Bore (c Face) | 5/8" |
| Input Bore Size | 5/8" |
| Input Dia. | 5/8" |
| Input Keyway Size (c Face) | 3/16" x 3/32" |
| Input Rpm | 1750 RPM |
| Input Style | C Face Coupled |
| Material | Aluminum |
| Max Input Hp | 91/200 hp |
| Max. Input Hp | 91/200 hp |
| Mounting Type | Base |
| No. Of Gear Reductions | 1 |
| Output Diameter | 1 1/8" |
| Output Hp | 36/125 hp |
| Output Key Size | 1/4" x 1.62" |
| Output Rpm | 21.9 RPM |
| Output Shaft | Shaft |
| Output Shaft Assembly Code | L |
| Output Shaft Dia. | 1 1/8" |
| Output Shaft Direction | Left |
| Output Shaft Orientation | L |
| Output Shaft Type | Left Handed Shaft |
| Output Style | L |
| Output Torque | 830 lbs.-in. |
| Overhung Load | 1770 lbs. |
| Product Line | EL Series - Aluminum Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reduction Type | Single |
| Series | EL Series |
| Series Style | EL-BM-L |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Ships Factory Direct | No |
| Weight | 31 lbs. |
| Ship weight (kg) | 13.95 |
| Ship height (cm) | 26.67 |
| Ship length (cm) | 27.15 |
| Ship width (cm) | 23.01 |
| Model | Price | |
|---|---|---|
| EL8240537.16 | €2,017.36 | |
| EL8240537.20 | €2,017.36 | |
| EL8240538.16 | €2,017.36 | |
| EL8240538.19 | €2,017.36 | |
| EL8240538.20 | €2,017.36 | |
| EL8240538.23 | €2,017.36 | |
| EL8240539.16 | €2,017.36 |
