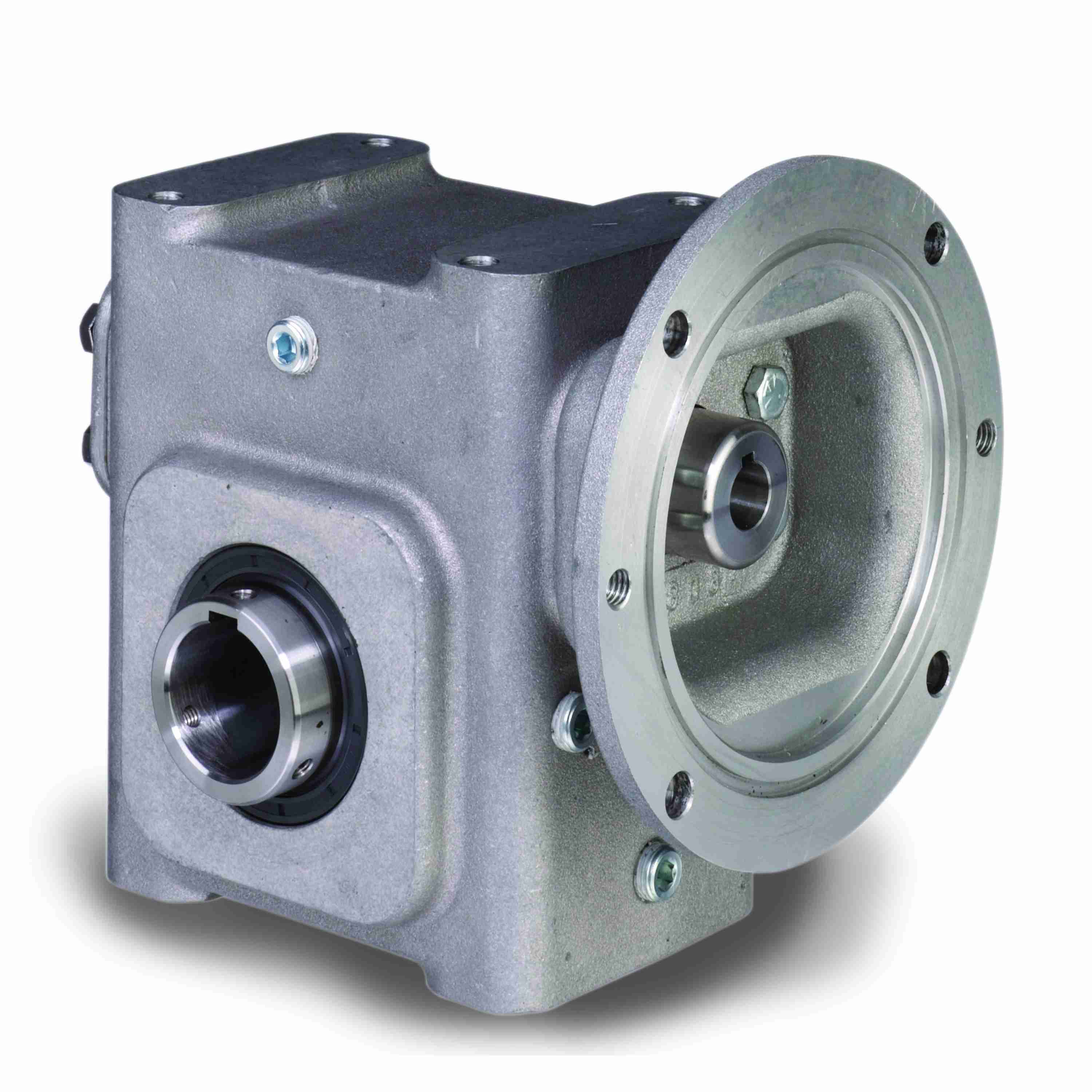

GROVE GEAR EL8180538.12 EL-HMQ818-7.5-H_-56-12 Worm Reducer, 7.5:1 Ratio, 0.625 Inch I.D, 0.75 Inch O.D, Aluminum
Get it by Tuesday, Jun 17
€1,351.43 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Reducer |
| Assembly | HMQ-H1 |
| Bore Code | 12 |
| Center Distance | 1 3/4" |
| Frame | 56C |
| Gear Type | Worm |
| Gearbox Type | Worm |
| Housing Material | Aluminum |
| Input Bore (c Face) | 5/8" |
| Input Bore Size | 5/8" |
| Input Dia. | 5/8" |
| Input Keyway Size (c Face) | 3/16" x 3/32" |
| Input Rpm | 1750 RPM |
| Input Style | C Face Quill |
| Material | Aluminum |
| Max Input Hp | 1 909/1000 hp |
| Max. Input Hp | 1.909 hp |
| Mounting Type | Shaft Mount |
| No. Of Gear Reductions | 1 |
| Output Diameter | 3/4" |
| Output Hp | 1.745 hp |
| Output Key Size | 3/16" x 1.5" |
| Output Rpm | 233.3 RPM |
| Output Shaft | Hollow Bore |
| Output Shaft Assembly Code | H1 |
| Output Shaft Orientation | H1 |
| Output Shaft Type | Hollow Shaft |
| Output Style | H1 |
| Output Torque | 471 lbs.-in. |
| Product Line | EL Series - Aluminum Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reduction Type | Single |
| Series | EL Series |
| Series Style | EL-HMQ-H1 |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Ships Factory Direct | No |
| Weight | 17 lbs. |
| Ship weight (kg) | 7.65 |
| Ship height (cm) | 26.67 |
| Ship length (cm) | 27.15 |
| Ship width (cm) | 23.01 |
| Model | Price | |
|---|---|---|
| EL8180549.10 | €1,351.43 | |
| EL8180549.14 | €1,351.43 | |
| EL8180549.16 | €1,351.43 | |
| EL8180550.10 | €1,351.43 | |
| EL8180550.14 | €1,351.43 | |
| EL8180550.16 | €1,351.43 | |
| EL8180551.10 | €1,351.43 |
