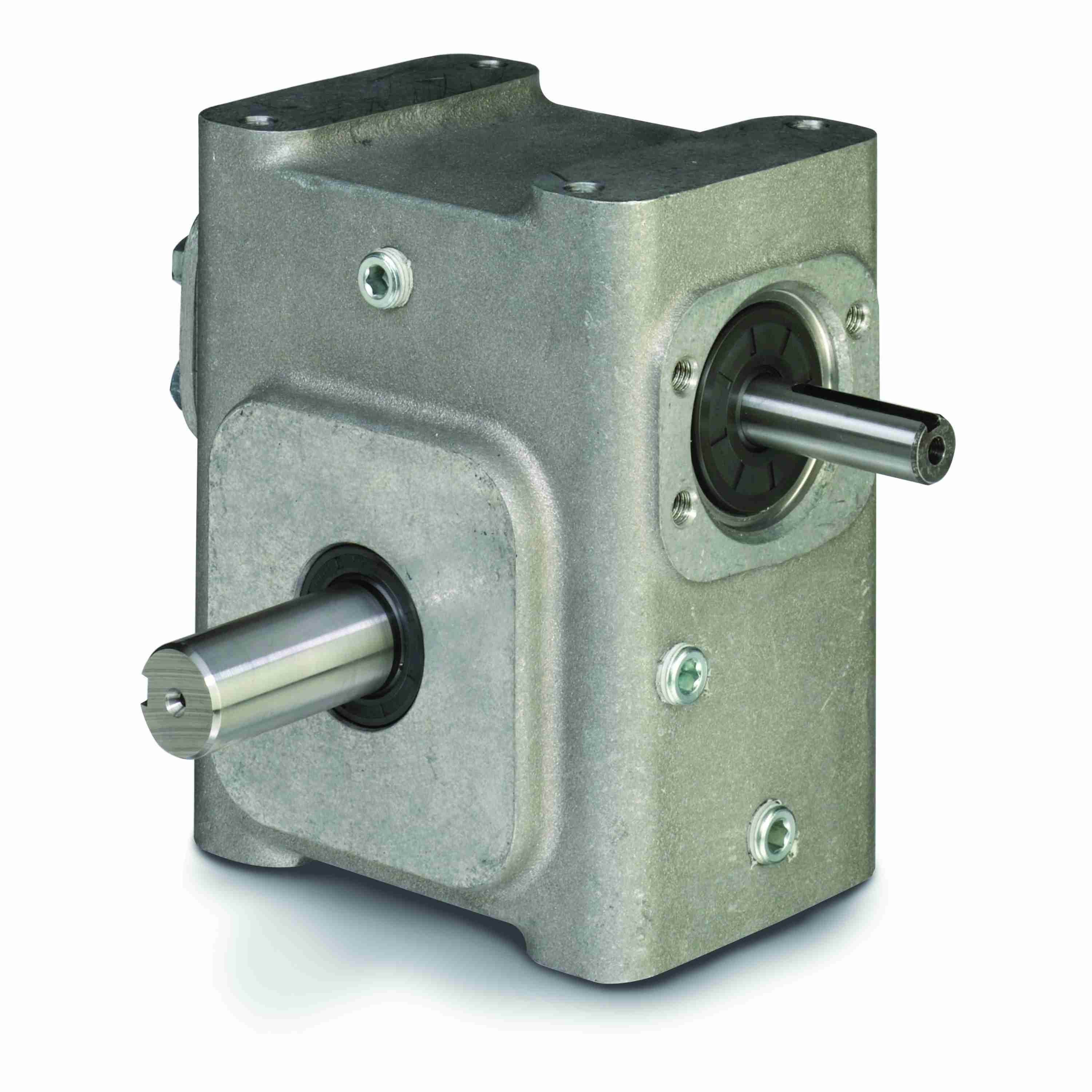

GROVE GEAR EL8180022.00 EL-B818-60-R Worm Reducer, 60:1 Ratio, 0.625 Inch I.D, 0.75 Inch O.D, Aluminum
Get it by Monday, Jun 16
€1,049.90 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Reducer |
| Center Distance | 1 3/4" |
| Gear Ratio | 60:1 |
| Gearbox Type | Worm |
| Height | 5.86" |
| Input Bore Size | 5/8" |
| Input Dia. | 5/8" |
| Input Keyway Size | 0.1875" x 1.38" |
| Input Shaft Length | 1.78" |
| Input Style | Shaft |
| Input Type | Solid Shaft |
| Lubrication | PAG Synthetic Oil |
| Material | Aluminum |
| Max Input Hp | 449/1000 hp |
| Max. Input Hp | 0.449 hp |
| Mounting Type | Base |
| Output Dia. | 3/4" |
| Output Hp | 0.288 hp |
| Output Keyway Size | 0.1875" x 1.38" |
| Output Shaft Dia. | 3/4" |
| Output Shaft Length | 2.05" |
| Output Shaft Type | Right Handed Shaft |
| Output Type | Shaft |
| Product Series | EL Series |
| Ships Factory Direct | No |
| Torque Rating | 623 lbs.-in. |
| Type | Right Angle Single Reduction |
| Ship weight (kg) | 5.85 |
| Ship height (cm) | 26.67 |
| Ship length (cm) | 27.15 |
| Ship width (cm) | 23.01 |
| Model | Price | |
|---|---|---|
| EL8180013.00 | €1,049.90 | |
| EL8180014.00 | €1,049.90 | |
| EL8180017.00 | €1,049.90 | |
| EL8180019.00 | €1,049.90 | |
| EL8180021.00 | €1,049.90 |
