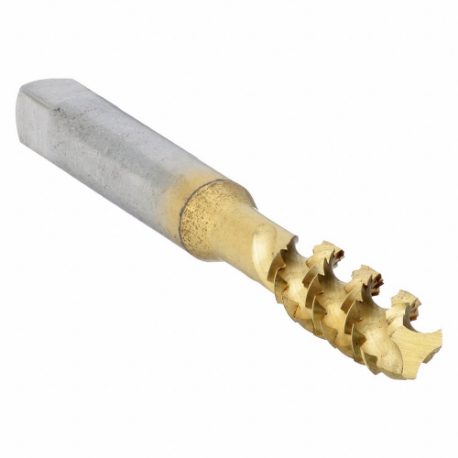

GREENFIELD THREADING 367913 SFGP-TN Spiral Flute Tap, 1/4-20 Thread Size, 1 Inch Thread Length, 2 1/2 Inch Length, Tin
Get it by Wednesday, Jun 18
€16.65 /unit
Add To Cart
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | Spiral Flute Tap |
| 55% Thread Drill Size | #3 |
| 65% Thread Drill Size | #5 |
| 75% Thread Drill Size | #7 |
| Drill Bit Size | #7 |
| Extended Neck | Yes |
| Finish | Titanium Nitride Coated |
| Fits Class | Class 2B |
| Helix Angle | 52° |
| Number Of Flutes | 3 |
| Overall Length | 2 1/2" |
| Primary Material Application | Steel |
| Shank Dia. | 1/4" |
| Shank Length | 1 1/2" |
| Shank Type | Straight |
| Spiral Direction | Right Hand |
| Square Size | 0.191" |
| System Of Measurement | Imperial |
| Tap Chamfer | Bottoming |
| Tap Material | High Speed Steel |
| Tap Shank Standard | USCTI Table 302A |
| Tap Type | Spiral Flute |
| Thread Direction | Right Hand |
| Thread Length | 1" |
| Thread Limit | H3 |
| Thread Size | 1/4"-20 |
| Thread Standard | Coarse |
| Threads Per Inch | 20 |
| Class Of Fit | Class 2B |
| Measurement System | Fractional Inch |
| Primary Material Application Iso Code | P |
| Shank Type - Machining | Straight |
| Standards | USCTI TABLE 302A |
| Tap Finish | TiN |
| Tap Style | Spiral Flute |
| Tap Thread Size | 1/4"-20 |
| Thread Limit / Class Of Fit | H3, 2B |
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 1 |
| Ship length (cm) | 9 |
| Ship width (cm) | 1.2 |
| Country of Origin | US |
