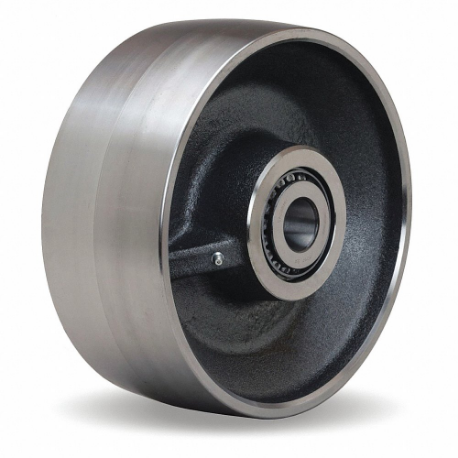

GRAINGER W-1040-HFSB-1-1/4 Heat-Resistant Steel Tread Wheel, 10 Inch Wheel Dia, 4 Inch Wheel Width
Get it by Tuesday, Jun 17
€635.93 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Tread Wheel |
| Application | Aerospace Tooling, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Industrial/Commercial Wheels, Material Carts |
| Core Color | Silver |
| Esd Conductive | Yes |
| Features | Durable, High Heat, Quiet Operation, Reliable |
| For Axle Size | 1 1/4" |
| For Surface Type | Concrete |
| Hub Length | 4 1/4" |
| Includes Spanner Bushing | Included |
| Load Rating | 6700 lbs. |
| Non-marking | No |
| Nsf Listed | No |
| Operating Temp. Range | -50°F to +200°F |
| Tread Material, Wheel Material | Steel |
| Tread Shape | Standard |
| Wheel Bearing Material | Stainless Steel |
| Wheel Bearing Type | Precision Ball |
| Wheel Core Material | Forged Steel |
| Wheel Core Type | Solid |
| Wheel Dia. | 10" |
| Wheel Width | 4" |
| Wheel/tread Color | Silver |
| Wheel/tread Hardness | Brinell 179 |
| Wheel/tread Hardness Rating | Extra Hard |
| Operating Temperature Range | -50°F to +200°F |
| Standards | ICWM |
| Wheel/tread Material | Steel |
| Ship weight (kg) | 24.75 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Product | Model | Price | |
|---|---|---|---|
 |
W-420-HMB-1/2 | €179.04 | |
 |
W-620-HFSB-1/2 | €220.67 | |
 |
W-620-HMB-1/2 | €160.67 | |
 |
W-820-HMB-1/2 | €235.56 | |
 |
W-830-HMB-3/4 | €329.06 | |
 |
W-1240-HFSB-1-1/4 | €756.49 | |
 |
W-415-HFSB-1/2 | €240.10 |
