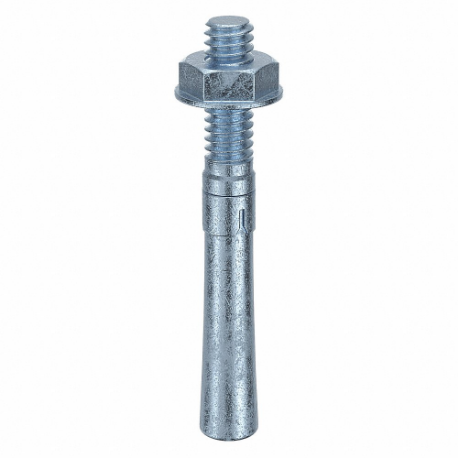

| Item | Wedge Anchor |
| Anchor Dia. | 1/4" |
| Anchor Length | 2 1/4" |
| Compatible Material | Concrete |
| Display Qty | 900 |
| Finish | Zinc Plated |
| Grade | Non Graded |
| Includes | Nut And Washer |
| Material | Steel |
| Min. Installation Depth | 1 1/8" |
| System Of Measurement | Imperial |
| Thread Length | 3/4" |
| Thread Size | 1/4"-20 |
| Anchor Diameter | 1/4" |
| Drill Bit Size | 1/4" |
| Industry Standards | GSA Spec FF-S-325 Group II, Class 1, Type 4 |
| Material Grade/class | Ungraded |
| Minimum Installation Depth | 1 1/8" |
| Overall Length | 2 1/4" |
| Ultimate Shear Strength (4,000 Psi Concrete) | 1813 lbs. |
| Ultimate Tension Strength (4,000 Psi Concrete) | 2 lbs. |
| Ship weight (kg) | 20.49 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
