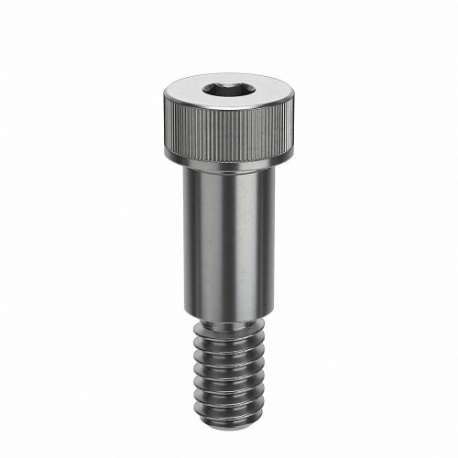

| Item | Shoulder Screw |
| Dimensional Standards | ANSI/ASME B18.3 |
| Display Qty | 1 |
| Drive Size | 5/32" |
| Drive Type | Hex Socket |
| Finish | Plain |
| Grade | Grade 316H5 |
| Hardness | Rockwell BHN250 |
| Head Dia. | 7/16" |
| Head Height | 7/32" |
| Head Texture | Knurled |
| Head Type | Standard |
| Material | Stainless Steel |
| Precision Screw | No |
| Shear Strength | 65000 psi |
| Shoulder Dia. | 5/16" |
| Shoulder Dia. Tolerance | -0.004" to 0" |
| Shoulder Length | 9/16" |
| Shoulder Length Tolerance | -0.005" to +0.005" |
| System Of Measurement | Imperial |
| Tensile Strength | 130000 psi |
| Thread Fit | Class 3A |
| Thread Length | 7/16" |
| Thread Size | 1/4"-20 |
| Type | Standard Shoulder Screw |
| Head Diameter | 7/16" |
| Material Grade/class | Grade 316 H5 |
| Rockwell Hardness | BHN250 |
| Shoulder Diameter | 5/16" |
| Shoulder Diameter Tolerance | 0.004" to 0" |
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
