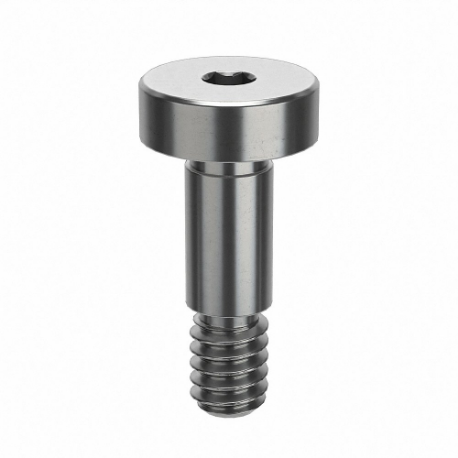

| Item | Shoulder Screw |
| Dimensional Standards | AMPG 2013 UL.02 |
| Display Qty | 1 |
| Drive Size | 2 mm |
| Drive Type | Socket |
| Finish | Plain |
| Grade | Grade 316 |
| Head Dia. | 6 mm |
| Head Height | 1.3 mm |
| Head Texture | Smooth |
| Head Type | Ultra Low Profile Standard |
| Material | Stainless Steel |
| Precision Screw | No |
| Shoulder Dia. | 4 mm |
| Shoulder Dia. Tolerance | -0.025 mm to 0 mm |
| Shoulder Length | 6 mm |
| Shoulder Length Tolerance | -0 mm to +0.05 mm |
| System Of Measurement | Metric |
| Tensile Strength | 70000 psi |
| Thread Fit | Class 6G |
| Thread Length | 4 mm |
| Thread Pitch | 0.5 mm |
| Thread Size | M3 x 0.5 |
| Type | Standard Shoulder Screw |
| Head Diameter | 6 mm |
| Material Grade/class | 316 |
| Shoulder Diameter | 4 mm |
| Shoulder Diameter Tolerance | -0.025 mm to +0 mm |
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
