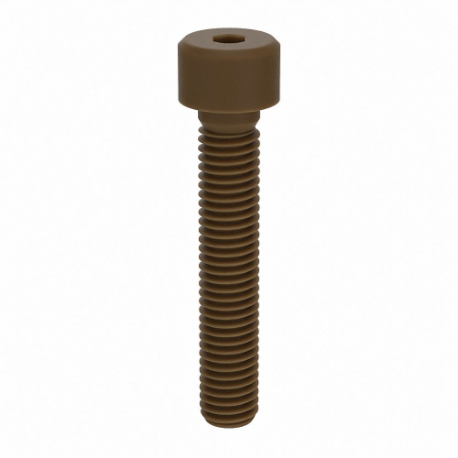

| Item | Socket Head Cap Screw |
| Display Qty | 10 |
| Drive Size | 6 mm |
| Drive Type | Socket |
| Finish | Plain |
| Grade | Non Graded |
| Head Dia. | 13.25 mm |
| Head Height | 7.75 mm |
| Head Type | Standard |
| Length | 45 mm |
| Material | Glass Filled PEEK |
| Max. Temp. | 500°F |
| Min. Temp. | -50°F |
| Min. Thread Length | 45 mm |
| System Of Measurement | Metric |
| Tensile Strength | 28565 psi |
| Thread Direction | Right Hand |
| Thread Fit | Class 6G |
| Thread Size | M8 x 1.25 |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
| Combined Material & Grade | Not Graded Glass Filled PEEK |
| Dimensional Standards | ASME B18.3 |
| Head Diameter | 13.25 mm |
| Material Grade/class | Ungraded |
| Material Type | Plastic |
| Maximum Temperature | 500°F |
| Minimum Temperature | -50°F |
| Minimum Thread Length | 45 mm |
| Screw Length | 45 mm |
| Thread Pitch | 1.25 mm |
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
