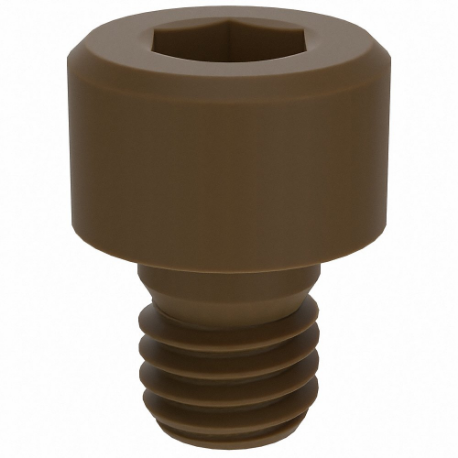

| Item | Socket Head Cap Screw |
| Display Qty | 10 |
| Drive Size | 4 mm |
| Drive Type | Socket |
| Finish | Plain |
| Grade | Non Graded |
| Head Dia. | 8.5 mm |
| Head Height | 4.9 mm |
| Head Type | Standard |
| Length | 6 mm |
| Material | Glass Filled PEEK |
| Max. Temp. | 500°F |
| Min. Temp. | -50°F |
| Min. Thread Length | 6 mm |
| System Of Measurement | Metric |
| Tensile Strength | 26800 psi |
| Thread Direction | Right Hand |
| Thread Fit | Class 2A |
| Thread Size | M5 x 0.8 |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
| Combined Material & Grade | Not Graded Glass Filled PEEK |
| Dimensional Standards | ASME B18.3.1M, DIN 912, ISO 4762 |
| Head Diameter | 8.5 mm |
| Material Grade/class | Ungraded |
| Material Type | Plastic |
| Maximum Temperature | 500°F |
| Minimum Temperature | -50°F |
| Minimum Thread Length | 6 mm |
| Screw Length | 6 mm |
| Thread Pitch | 0.8 mm |
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
