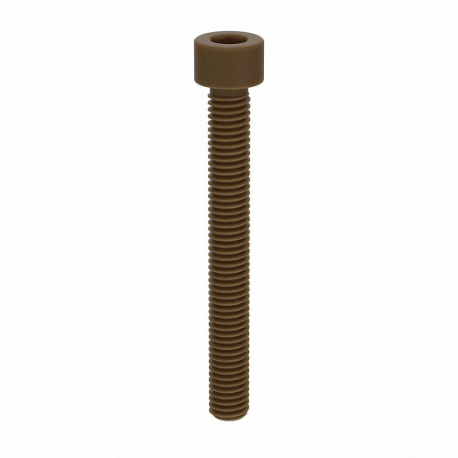

| Item | Socket Head Cap Screw |
| Display Qty | 10 |
| Drive Size | 5/32" |
| Drive Type | Socket |
| Finish | Plain |
| Grade | Non Graded |
| Head Dia. | 0.307" |
| Head Height | 0.187" |
| Head Type | Standard |
| Length | 1 5/8" |
| Material | PEEK |
| Max. Temp. | 500°F |
| Min. Temp. | -50°F |
| Min. Thread Length | 1 5/8" |
| System Of Measurement | Imperial |
| Tensile Strength | 26800 psi |
| Thread Direction | Right Hand |
| Thread Fit | Class 2A |
| Thread Size | #10-32 |
| Thread Style | Fully Threaded |
| Thread Type | Fine |
| Combined Material & Grade | Not Graded PEEK |
| Dimensional Standards | ASME B18.3 |
| Head Diameter | 0.307" |
| Material Grade/class | Ungraded |
| Material Type | Plastic |
| Maximum Temperature | 500°F |
| Minimum Temperature | -50°F |
| Minimum Thread Length | 1 5/8" |
| Screw Length | 1 5/8" |
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
