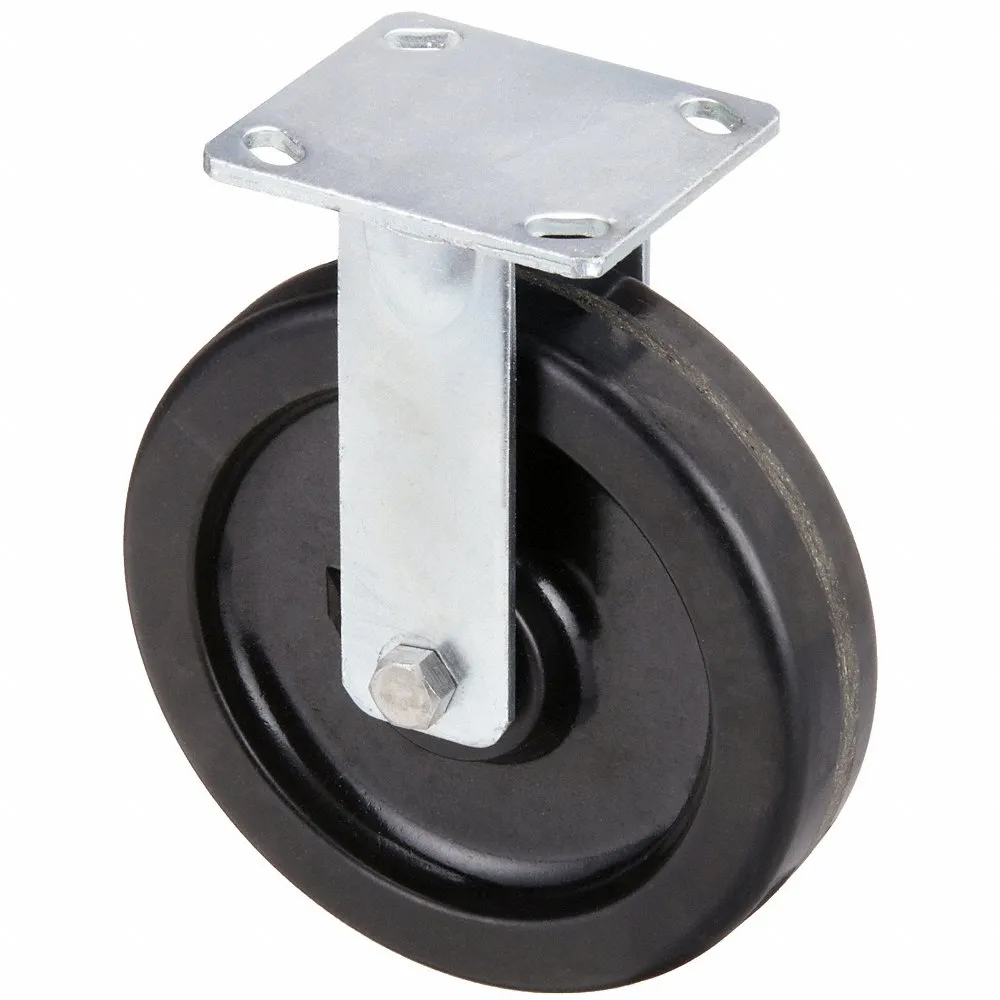

GRAINGER P21R-PH080R-14 Standard Plate Caster, Rigid, Phenolic, 1250 lbs Capacity, 8 Inch Wheel Dia
€37.46 /unit
Request a Quote
Payment
Payment
| Item | Rigid Plate Caster |
| Core Color | Black |
| Frame Color | Silver |
| Frame Finish | Zinc Plated |
| Hub Length | 2 3/16" |
| Inside Bolt Hole Spacing | 2 5/8" x 3 5/8" |
| Load Rating | 1250 lbs. |
| Mounting Bolt Dia. | 3/8" |
| Mounting Height | 9 1/2" |
| Non-marking | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Outside Bolt Hole Spacing | 3" x 3" |
| Swivel Radius | None Rigid Caster |
| Wheel Type | Flat Free |
| Wheel Width | 2" |
| Application | Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks |
| Caster Brake Type | No Brake Included |
| Caster Frame Material | Steel |
| Caster Mounting Type | Plate |
| Caster Sub-type | Rigid |
| Esd Conductive | No |
| Features | Low Rolling Resistance |
| For Axle Dia. | 1/2" |
| For Surface Type | Concrete |
| Frame Construction | Stamped |
| Includes Mounting Fasteners | No |
| Includes Spanner Bushing | Yes |
| Includes Thread Guards | No |
| Mounting Plate Bolt Hole Pattern | B |
| Mounting Plate Size | 4" x 4 1/2" |
| Mounting Plate Size & Bolt Hole Pattern | 4" x 4 1/2" ( B ) |
| Mounting Plate Thickness | 1/4" |
| Nsf Listed | No |
| Operating Temperature Range | -20°F to +250°F |
| Overall Wheel Width | 2" |
| Replacement Wheel | 489D68 |
| Standards | ICWM |
| Swivel Bearing Seal Type | Open |
| Swivel Construction | Kingpin |
| Swivel Lock Type | No Lock Included |
| Swivel Raceway Type | Single Ball |
| Tread Shape | Standard |
| Wheel Bearing Material | Steel |
| Wheel Bearing Type | Ball |
| Wheel Core Material | Phenolic |
| Wheel Core Type | Solid |
| Wheel Dia. | 8" |
| Wheel/tread Color | Black |
| Wheel/tread Hardness | Rockwell 102E |
| Wheel/tread Hardness Rating | Hard |
| Wheel/tread Material | Phenolic |
| With Toe Plate | No |
| Ship weight (kg) | 3.11 |
| Country of Origin | CN |
| Product | Model | Inside Bolt Hole Spacing | Item | Load Rating | Mounting Bolt Dia. | Outside Bolt Hole Spacing | Wheel Width | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
493W82 | 1-1/16" x 3-15/32" | Rigid Plate Caster | 225 lb | 5/16" | 1-3/16" x 4" | 1 1/4" | €23.01 | RFQ
|
 |
P21R-PH060R-14 | 3" x 3" | Plate Caster | 1200 lbs. | 3/8" | 2 5/8" x 3 5/8" | 2" | €28.92 | RFQ
|
 |
P21R-PH050R-14 | 2-5/8" x 3-5/8" | Rigid Plate Caster | 1000 lb | 3/8" | 3" x 3" | 2" | €25.52 | RFQ
|
