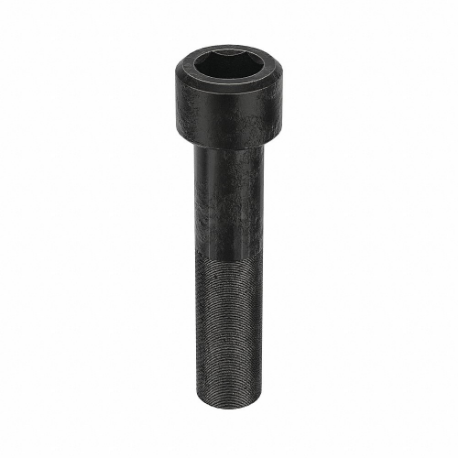

| Item | Socket Head Cap Screw |
| Display Qty | 10 |
| Drive Size | 17 mm |
| Drive Type | Socket |
| Finish | Black Oxide |
| Head Dia. | 30 mm |
| Head Height | 20 mm |
| Head Type | Standard |
| Length | 90 mm |
| Material | Alloy Steel |
| Max. Temp. | 400°F |
| Min. Temp. | -20°F |
| Min. Thread Length | 52 mm |
| System Of Measurement | Metric |
| Tensile Strength | 160000 psi |
| Thread Direction | Right Hand |
| Thread Size | M20 x 2.5 |
| Thread Style | Partially Threaded |
| Thread Type | Coarse |
| Combined Material & Grade | Grade Alloy Steel |
| Dimensional Standards | ASME B18.3 |
| Head Diameter | 30 mm |
| Material Quality Standards | ASTM A574 |
| Material Type | Steel |
| Maximum Temperature | 400°F |
| Minimum Temperature | -20°F |
| Minimum Thread Length | 52 mm |
| Screw Length | 90 mm |
| Thread Pitch | 2.5 mm |
| Ship weight (kg) | 2.77 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
