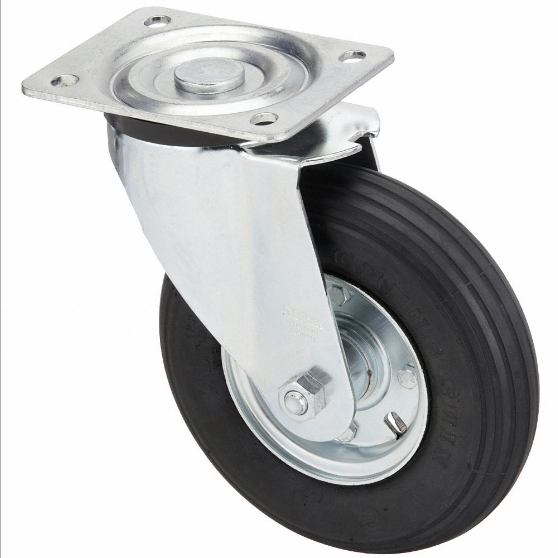

GRAINGER L-P 200R 7-7/8 Inch Light-Duty Ribbed Tread Swivel Pneumatic Caster, 165 Lbs. Load Rating
€113.82 /unit
Request a Quote
Payment
Payment
| Item | Pneumatic Caster |
| Brake Type | Side Thumbscrew |
| Caster Product Group | Swivel Caster |
| Caster Temp. Range Available | Yes |
| Caster Type | Swivel |
| Frame Finish | Zinc Plated |
| Frame Material | Steel |
| Hole Pattern | C |
| Hub Color | Silver |
| Hub Material | Steel |
| Hub Type | Centered |
| Hub Width | 2 3/8" |
| Inside Bolt Hole Spacing | 2.938" x 4.125" |
| Load Rating | 165 lbs. |
| Mounting Bolt Dia. | 3/8" |
| Mounting Type | Plate |
| Non-marking | No |
| Number Of Wheels | 1 |
| Outside Bolt Hole Spacing | 3 1/8" x 4 1/8" |
| Overall Height | 9 1/4" |
| Plate Thickness | 0.156" |
| Ply | 2 |
| Raceway Type | Double Ball |
| Tire Rim Dia. | 4" |
| Tire Thickness | 2" |
| Tread | Ribbed |
| Wheel Bearings | Roller |
| Wheel Diameter | 7 7/8" |
| Wheel Width | 1.953" |
| Caster Brake Type | No Brake Included |
| Caster Frame Material | Steel |
| Caster Mounting Type | Plate |
| Caster Sub-type | Swivel |
| Includes Thread Guards | No |
| Mounting Height | 9 1/4" |
| Mounting Plate Bolt Hole Pattern | C |
| Mounting Plate Size | 4 5/16" x 5 1/2" |
| Mounting Plate Size & Bolt Hole Pattern | 4 5/16" x 5 1/2" ( C ) |
| Number Of Mounting Holes | 4 |
| Operating Temperature Range | -20°F to +120°F |
| Swivel Construction | Kingpin |
| Swivel Raceway Type | Double Ball |
| Tread Color | Black |
| Wheel Bearing Type | Roller |
| Wheel Dia. | 7 7/8" |
| Wheel/tread Hardness | 65 Shore A |
| Wheel/tread Hardness Rating | Soft |
| Wheel/tread Material | Rubber |
| Ship weight (kg) | 1.11 |
| Country of Origin | DE |
| Product | Model | Brake Type | Caster Load Rating Range | Caster Product Group | Caster Temp. Range Available | Caster Type | Frame Finish | Frame Material | Inside Bolt Hole Spacing | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
P21R-P060B-14-H7 | - | Light-Duty | Rigid Caster | No | Rigid | Zinc | Steel | 3" x 3" | €52.06 | |
 |
P21S-P060B-14-H7 | - | Light-Duty | Swivel Caster | No | Swivel | Zinc | Steel | 3" x 3" | €73.43 | |
|
P21R-P080B-14 | - | Light-Duty | Rigid Caster | No | Rigid | Zinc | Steel | 3" x 3" | €66.12 | |
|
P21S-P080B-14 | - | Light-Duty | Swivel Caster | No | Swivel | Zinc | Steel | 3" x 3" | €75.79 | |
|
P21R-P100WK-14 | - | Light-Medium Duty | Rigid Caster | No | Rigid | Zinc | Steel | 3" x 3" | €98.74 | |
|
P21S-P100WK-14 | - | Light-Medium Duty | Swivel Caster | No | Swivel | Zinc | Steel | 3" x 3" | €115.12 | |
 |
B-P 200R | Side Thumbscrew | Light-Duty | Rigid Caster | Yes | Rigid | Zinc Plated | Steel | 2-15/16" x 4-1/8" | €496.02 | RFQ
|
