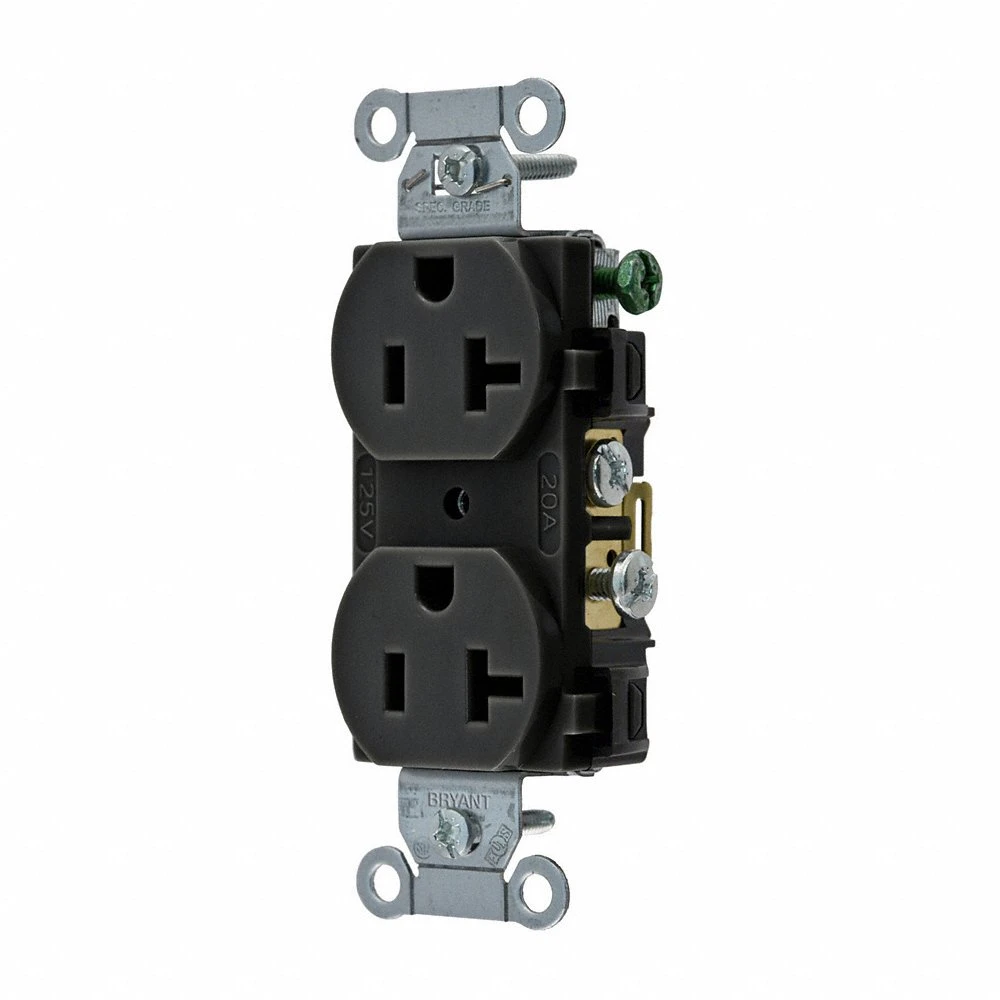

| Item | Receptacle |
| Amps | 20A |
| Body Material | Composite |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Cover Type | No Cover |
| Depth | 1.07" |
| Face Plate Height | 2.73" |
| Gfci | No |
| Grounding | Grounded |
| Housing Color | Black |
| Hp | 1 hp |
| Includes | Mounting Hardware |
| Max. Wire Size | 12 AWG |
| Min. Wire Size | 14 AWG |
| Mount Hole Center-to-center Height | 4.06" |
| Mounting Hardware Included | Yes |
| Mounting Type | Flush |
| Nema Receptacle Configuration | NEMA 5-20R |
| Number Of Gangs | 1 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Polarized | Yes |
| Receptacle Type | Duplex |
| Surge Protection | No |
| Voltage | 125V AC |
| Wire Connection Location | Side |
| Wire Connection Type | Screw Terminals |
| Afci | No |
| Current Rating | 20A |
| Grade | Federal Specification |
| Horsepower Rating | 1 hp |
| Housing Material | Composite |
| Includes Mounting Hardware | Yes |
| Maximum Wire Size | 12 AWG |
| Minimum Wire Size | 14 AWG |
| Mount Type | Flush |
| Overall Depth | 1.1" |
| Phase | Single |
| Special Resistance | Impact Resistant |
| Standards | CSA CERTIFIED, FEDERAL SPECIFICATION, UL LISTED |
| Voltage Rating | 125V AC |
| Wire Connection Types | Screw Terminals |
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Product | Model | Item | Price | |
|---|---|---|---|---|
 |
5679 | Flanged Receptacle | €34.86 | |
 |
5479 | Flanged Receptacle | €46.32 | |
 |
62167 | GFCI Receptacle | €38.05 | |
 |
2097TRGCC4 | Power Inlet | €92.28 | |
 |
DRS15BLK | Receptacle | €6.64 | |
 |
DRS15BLKTR | Receptacle | €12.81 | |
 |
DRS15 | Receptacle | €6.64 |
