Get it by Tuesday, Jun 17
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
Payment

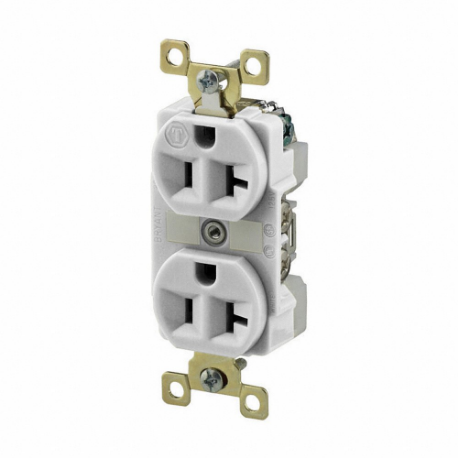

| Item | Receptacle |
| Amps | 20A |
| Body Material | Nylon |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Cover Type | No Cover |
| Depth | 1 4/25" |
| Face Plate Width | 1.54" |
| Gfci | No |
| Grade | Federal |
| Grounding | Grounded |
| Housing Color | White |
| Hp | 1 hp |
| Includes | Mounting Hardware |
| Max. Wire Size | 12 AWG |
| Min. Wire Size | 14 AWG |
| Mount Hole Center-to-center Height | 3 7/25" |
| Mounting Hardware Included | Yes |
| Mounting Type | Flush |
| Nema Receptacle Configuration | NEMA 5-20R |
| Number Of Gangs | 1 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Polarized | Yes |
| Receptacle Type | Duplex |
| Surge Protection | No |
| Voltage | 125V AC |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminals |
| Afci | No |
| Current Rating | 20A |
| Horsepower Rating | 1 hp |
| Housing Material | Nylon |
| Includes Mounting Hardware | Yes |
| Maximum Wire Size | 12 AWG |
| Minimum Wire Size | 14 AWG |
| Mount Type | Flush |
| Overall Depth | 1.2" |
| Phase | Single |
| Signal & Power Protection | Standard Protection |
| Special Resistance Properties | Corrosion Resistant |
| Standards | CSA CERTIFIED, FEDERAL SPECIFICATION W-C-59, NEMA WD-1 AND WD-6, UL 498, UL LISTED |
| Voltage Rating | 125V AC |
| Wire Connection Types | Screw Terminals |
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Product | Model | Price | |
|---|---|---|---|
 |
5262BBLK | €13.98 | |
 |
BRY5262BLKWR | €33.40 | |
 |
5262BN | €13.06 | |
 |
BRY5262 | €17.58 | |
 |
BRY5262IGGRY | €40.96 | |
 |
BRY5262GRY | €15.83 | |
 |
5262BGRY | €13.89 |
