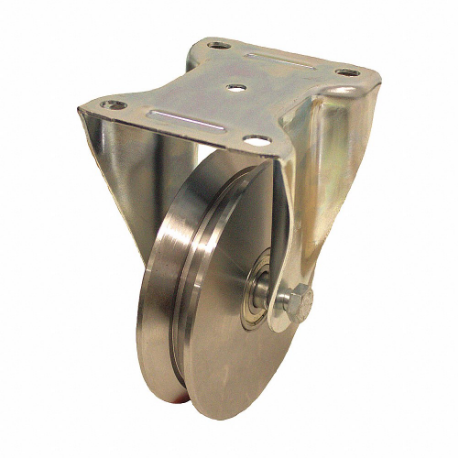

| Item | Plate Caster |
| Application | Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks |
| Brake Type | No Brake Included |
| Caster Material | Steel |
| Caster Sub-type | Rigid |
| Clearance On 1-1/2" Track | 0.562" |
| Clearance On 1-1/4" Track | 3/8" |
| Core Color | Silver |
| Features | Angle Iron Track Compatible |
| Frame Finish | Zinc Plated |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 2.938" x 4.125" |
| Load Rating | 1650 lbs. |
| Mounting Bolt Dia. | 0.438" |
| Mounting Height | 9 5/8" |
| Mounting Plate Bolt Hole Pattern | C |
| Mounting Plate Size | 4.312" x 5.562" |
| Non-marking | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Outside Bolt Hole Spacing | 3 5/32" x 4 9/64" |
| Recommended Track Size | 1 1/2" x 1 1/2" x 1/4" x 1/4" |
| Replacement Wheel | P-DSPK 200K |
| Swivel Lock Type | No Lock Included |
| Swivel Radius | 0" |
| Tread Material, Wheel Material | Steel |
| Tread Shape | V Groove |
| Wheel Bearing Type | Precision Ball |
| Wheel Core Material | Steel |
| Wheel Diameter | 8" |
| Wheel Width | 1 3/8" |
| Wheel/tread Hardness | Brinell 190-230 |
| Wheel/tread Hardness Rating | Extra Hard |
| Ship weight (kg) | 9 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Product | Model | Price | |
|---|---|---|---|
 |
P21R-C040R-14-VG1 | €75.80 | |
 |
P21R-C050R-16-VG1 | €100.30 | |
 |
P21S-C050R-14-VG1 | €94.11 | |
|
P21S-C050R-16-VG1 | €104.46 | |
 |
P21S-C060R-16-VG1 | €111.90 | |
|
P21R-C060R-14-VG1 | €95.27 | |
 |
P21R-C060R-15-VG1 | €103.33 |
