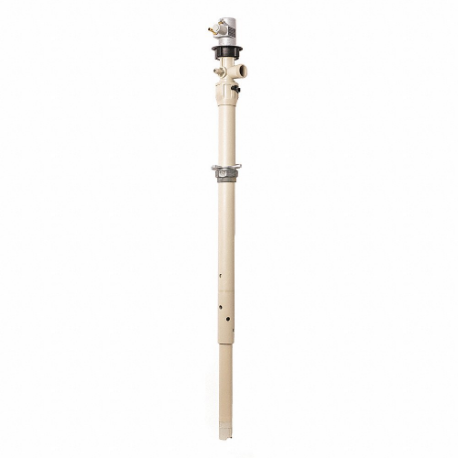

| Item | Air Operated Drum Pump |
| Compatible Chemicals | Ammonia (Liquids), Antifreeze (Coolant), Brake Fluid, Diesel Fuel, Ethyl (Ethanol), Ethylene Glycol, Fertilizers, Fungicides, Herbicides, Hydraulic Oils (Synthetic), Methyl (Methanol), Pesticides, Sodium Bicarbonate (10%), Windshield Washer Fluid |
| Discharge Connection Type | Hose Barb |
| Discharge Tube Inside Dia. | 1 1/4" |
| Discharge Tube Outside Dia. | 1 1/2" |
| Explosion Proof | Yes |
| Features | Air Motor With Silencer, Handle For On/Off Mixing |
| For Container Type | Drum |
| For Use With | 55 gal. Drums, Chemicals |
| Housing Material | Aluminum |
| Length | 44" |
| Max. Head Pressure | 10 psi |
| Max. Oil Flow | 33 GPM |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 10000 RPM |
| Noise Level | 80 dBA |
| Not Recommended Chemicals | Hydrochloric/Muriatic Acid (100%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%) |
| Outlet Size | 1/4" |
| Power Source | Air |
| Pump Connection Inside Dia. | 1" |
| Pump Connection Outside Dia. | 1 1/2" |
| Pump Connection Type | MNPT |
| Suction Tube Inside Dia. | 1 5/16" |
| Adapter Connection Type | MNPT |
| Adapter Material | Aluminum |
| Agency Compliance | CE, EX |
| Air Inlet Size | 1/4" FNPT |
| Air Outlet Size | 1/4" |
| Bung Connection Dia. | 2" |
| Diesel Exhaust Fluid Compatible | No |
| Discharge Tube Outlet Id | 1 1/4" |
| Discharge Tube Outlet Od | 1 1/2" |
| Duty Cycle | Continuous |
| Food Grade | No |
| For Container Size | 30 gal., 55 gal. |
| For Media Type | Ammonia, Antifreeze, Brake Fluid, Diesel Fuel, Ethanol, Ethylene Glycol, Fertilizers, Fungicides, Herbicides, Hydraulic Oil, Methanol, Pesticides, Sodium Bicarbonate, Windshield Washer Fluid |
| Height Above Container | 9" |
| Housing Material - Pumps | Aluminum |
| Includes | Hose Barb, Mixer, Tube Set |
| Includes Bung Adapter | Yes |
| Includes Discharge Hose | No |
| Includes Nozzle | No |
| Includes Spout | No |
| Includes Suction Tube | Yes |
| Max. Air Pressure | 140 psi |
| Max. Flow Rate | 54 GPM |
| Max. Fluid Temp. | 130°F |
| Max. Head - Pumps | 42 ft. |
| Max. Outlet Pressure | 13 psi |
| Max. Viscosity | 1000 cPS |
| Metered | No |
| Min. Air Pressure | 45 psi |
| Min. Fluid Temp. | 45°F |
| Motor Enclosure | TEFC |
| Motor Rpm | 10000 RPM |
| Overall Length | 44" |
| Pump Connection Id | 1" |
| Pump Connection Od | 1 1/2" |
| Pump Package Type | Basic Pump Without Discharge Hose |
| Ratio | 1:1 |
| Runs Dry | Yes |
| Seal Material | Tefzel |
| Self-priming | Yes |
| Suction Tube Id | 1 5/16" |
| Suction Tube Length | 39" |
| Suction Tube Material | Polypropylene |
| Suction Tube Od | 2" |
| Variable Speed | Yes |
| Wetted Materials | Polypropylene, Stainless Steel, Tefzel |
