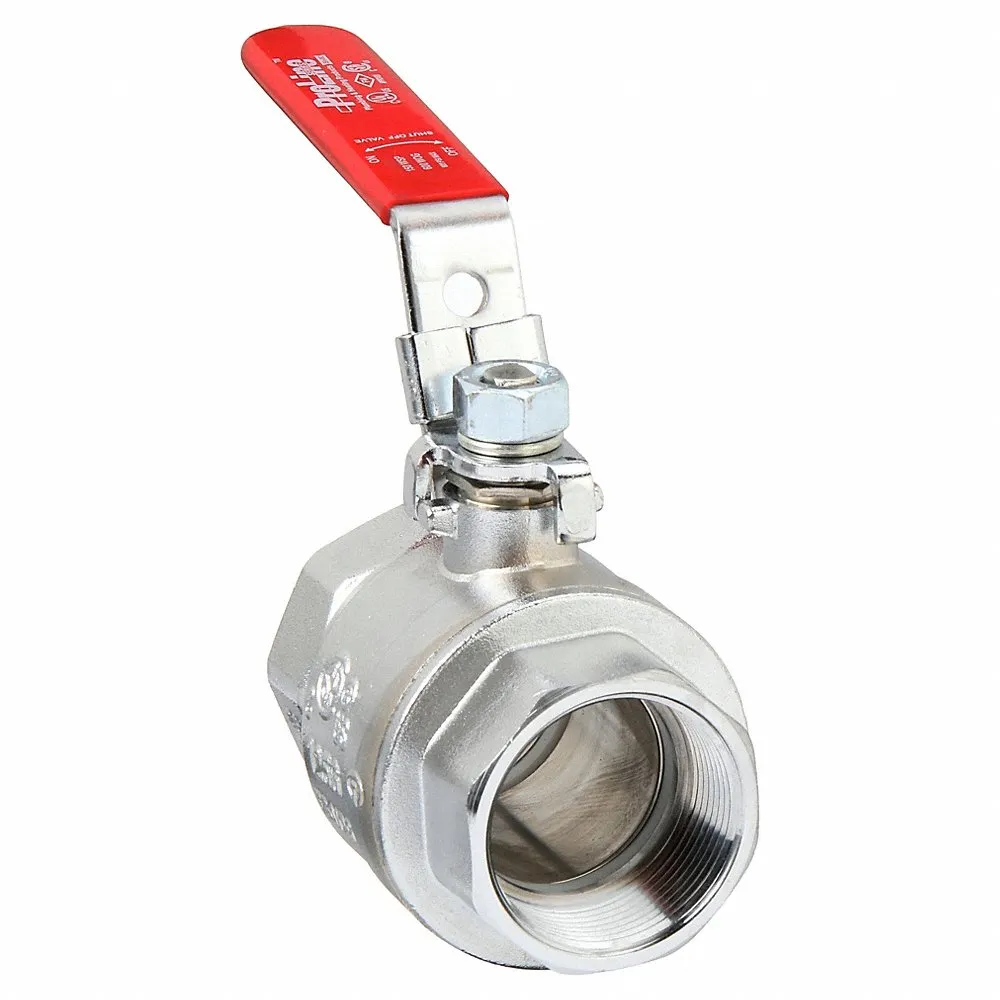

| Item | Ball Valve |
| Ball Material | Stainless Steel |
| Ball Material Grade | Grade 304 |
| Body Finish | Chrome Plated |
| Body Material | Brass |
| Body Seal Material | PTFE |
| Body Style | Inline |
| Connection Type | FNPT x FNPT |
| Grip Material | Vinyl |
| Handle Material | Steel, Vinyl |
| Handle Type | Locking Lever |
| Hose I.d. | 1 1/2" |
| Max. Pressure | 600 psi |
| Max. Steam Pressure | 150 psi WSP |
| Pipe Size | 1 1/2" |
| Port | Full |
| Seat Material | PTFE |
| Stem Material | Brass |
| Stem Type | Blowout Proof |
| Temp. Range | -20°F to +300°F |
| Tube Size | 1 1/2" |
| Valve Structure | Two Piece |
| 3-a Compliance | Not Rated |
| Ball Port Style | Full Port |
| Coefficient Of Volume (cv) | 94.924 |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
| Connection Size - Side 1 | 1 1/2" |
| Connection Size - Side 2 | 1 1/2" |
| Connection Type - Side 1 | IPS |
| Connection Type - Side 2 | IPS |
| For Media | Combustible Gases, Steam, Water |
| Handle | Locking Lever |
| Handle Color | Red |
| Manufacturer Warranty | 1 yr. |
| Max. Pressure (combustible Gas) | Not Rated |
| Max. Pressure (cwp) | 600 psi |
| Max. Pressure (steam) | 600 psi |
| Media Temp. Range | -20°F to 300°F |
| Nominal Valve Size | 1 1/2" |
| Overall Length | 7.58" |
| Seal Material | PTFE |
| Standards | ANSI Z21.15/CSA 9.1, ASME B16.33, ASME B16.44, FM 1140, MHKZ, YQNZ, YRBX, YRPV, YSDT |
| Vacuum Service Rating | -29.92 in. hg |
| Valve Body Style | Straight |
| Valve Construction | Two-Piece |
| Vented Ball Valve | Non Vented |
| Ship weight (kg) | 1.08 |
| Product | Model | Item | Price | |
|---|---|---|---|---|
 |
06Q031B04112 | Ball Valve | €195.50 | |
 |
SSV-150 | Ball Valve | €249.90 | |
 |
SSV-150NLH | Ball Valve | €238.85 | |
 |
GG-F600-150 | Ball Valve | - | RFQ
|
|
G-F600-150 | Ball Valve | €93.09 | |
 |
G-F600-150LH | Ball Valve | €83.39 | |
|
06Q031B04114 | Ball Valve | €139.75 |
