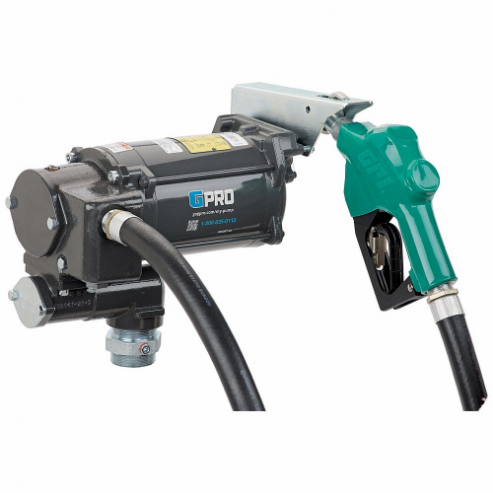

| Item | Fuel Transfer Pump |
| Bearing Type | Sealed |
| Bypass Valve | Yes |
| Discharge Hose Size | 18 ft. |
| Duty Cycle | 30 min. On/30 min. Off |
| Features | Self Priming, Durable Powder-Coated Finish, Explosion Proof Motor, Thermal Overload Protection, Vacuum Breaker Ready |
| Full Load Amps | 9.8A |
| Hose Dia. | 1" |
| Housing Material | Cast Iron |
| Hp | 3/4 hp |
| Includes | Pro35-115Ad 115/230V 35 Gpm Pump, Automatic Shut-Off Diesel Nozzle, Dispensing Hose, Ank Adapter, Lockable Nozzle Holder, Owner'S Manual |
| Inlet Type | NPT |
| Max. Flow Rate | 35 GPM |
| Media Type | Diesel, Gasoline, Kerosene |
| Metered | No |
| Nozzle Material | Aluminum |
| Nozzle Type | Automatic |
| Outlet Size | 1" |
| Overall Height | 13" |
| Overall Length | 17" |
| Overall Width | 17" |
| Pressure | 25 psi |
| Pump Application | Stationary Installations, Stationary Locations In Fleet |
| Pump Design | Rotary Vane |
| Pump Mount Size | 2" |
| Rated Voltage | 115V AC |
| Seal Material | Buna N |
| Seal Type | Mechanical |
| Self Priming | Yes |
| Agency Compliance | ATEX, Class I Div 2, cULus, IECEx |
| Bung Adapter Connection Type | MNPT |
| Bung Adapter Material | Aluminum |
| Bung Connection Diameter | 2" |
| Discharge Connection Type | FNPT |
| Explosion Proof | Yes |
| For Container Size | 30 gal. |
| For Media Type | Diesel, Gasoline, Kerosene |
| Frequency (hz) | 60 Hz |
| Full Load Current (a) | 9.8A |
| Height Above Container | 15" |
| Hose Cover Material | Nitrile |
| Hose Tube Material | Nitrile |
| Housing Finish | Powder Coated |
| Includes Bung Adapter | Yes |
| Includes Spout | No |
| Includes Suction Tube | No |
| Max. Fluid Temperature | 125°F |
| Max. Head | 15 ft. |
| Max. Outlet Pressure | 25 psi |
| Max. Viscosity | 50 SUS |
| Min. Fluid Temperature | -20°F |
| Motor Enclosure | Explosion Proof |
| Motor Hp | 3/4 hp |
| Motor Speed (rpm) | 1725 RPM |
| Mount Type | Bung |
| Number Of Phases | 1 |
| Power Source | Electric |
| Pump Connection Type | FNPT |
| Pump Kit Type | Pump with Hose & Nozzle |
| Runs Dry | No |
| Self-priming | Yes |
| Thermal Protection | Yes |
| Variable Speed | No |
