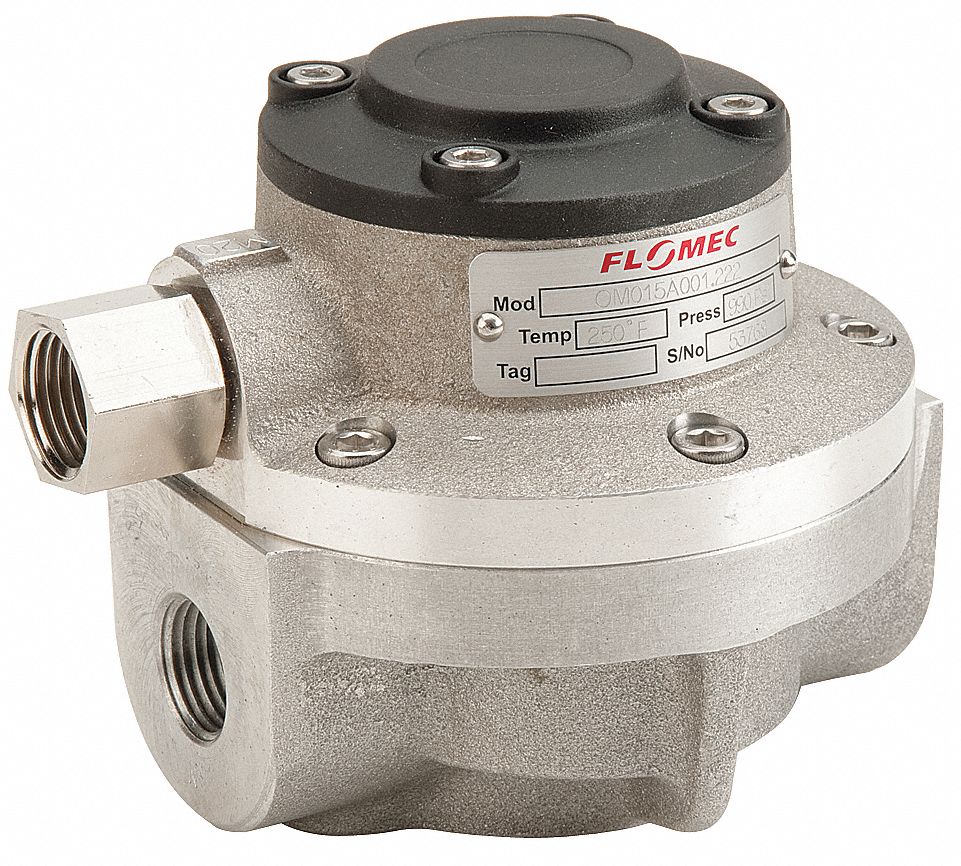

GPI OM015A511-222 Electronic Flowmeter, Oval Gear, 0.26 to 10.6 gpm Flow Range, 1/2 FNPT
Get it by Tuesday, Jun 17
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Electronic Flowmeter |
| Connection Size | 1/2" |
| Connection Type | FNPT |
| Flow Range | 0.26-10.6 GPM |
| Flowmeter Type | Hall Effect, Reed Switch |
| Fluid Temp. | -4°F to +250°F |
| Frequency Range | 2.76-112.36 Hz |
| Grade | Grade 316 |
| Housing Material | Aluminum |
| Max. Flow Rate | 10.6 GPM |
| Max. Operating Pressure | 990 psi |
| Max. Temp. | 180°F |
| Max. Viscosity | 4600 SUS |
| Media Type | Chemicals, High Viscosity, Lubricants, oils, Thick Fluids |
| Min. Flow Rate | 0.26 GPM |
| O-ring Material | Viton |
| Output Type | Reed Switch And Hall Effect |
| Overall Length | 4" |
| Power Required | 5/24V DC |
| Rotor Material | Stainless Steel |
| Series | OM Series |
| Wetted Material | Aluminum, Carbon, Stainless Steel, Viton |
| Accuracy | +/-1% |
| Compatible Flow Material | Chemicals, Lubricants, Oils, Viscous Fluids |
| Flow Rate | 0.26-10.6 GPM |
| Fluid Connection | 1/2" NPT |
| Max. Frequency | 112 9/25 Hz |
| Max. Media Temperature | 250°F |
| Media Temp. Range | 4°F to 250°F |
| Min. Frequency | 2 19/25 Hz |
| Min. Media Temperature | 4°F |
| Product Type | Oval Gear Flow Meter |
| Unit Of Measure | Gallons, Liters |
| Ship weight (kg) | 2.3 |
| Ship height (cm) | 12.95 |
| Ship length (cm) | 12.95 |
| Ship width (cm) | 12.95 |
| Product | Model | Accuracy | Connection Size | Display Type | Display Units | Flow Range | Housing Material | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
OM015A001-826R7G | +/- 0.5% | 1/2" | LCD | cu. m, gal., kg, Liter, lb. | 1 To 40 lpm | Aluminum | - | RFQ
|
 |
OM015A001-822R5G | +/- 0.5% | 1/2" | LCD | gal. | 1 To 40 lpm | Aluminum | - | RFQ
|
 |
OM040S003-822R5G | +/- 0.5% | 1.5" | LCD | gal. | 15 To 250 lpm | 316 SS | - | RFQ
|
 |
OM025A001-820M4 | +/- 1% | 1" | Mechanical | - | 2.6 to 40 gpm | Aluminum | - | RFQ
|
