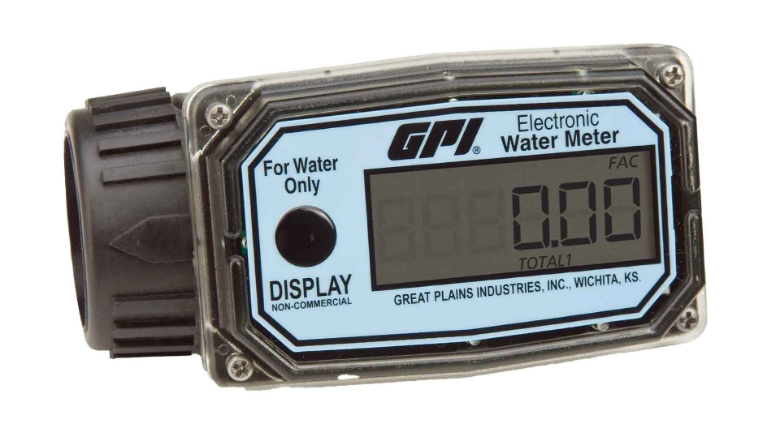

GPI 01N31LM 113255-5 Water Meter, Turbine, 10 To 100 lpm Flow Range, 1 FNPT
Get it by Tuesday, Jun 17
€325.29 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Flowmeter |
| Connection Size | 1" |
| Connection Type | NPT |
| Display Type | Digital |
| Flow Range | 3-30 GPM |
| Flowmeter Type | Turbine |
| Fluid Temp. | +14°F to +130°F |
| Grade | Grade 316 |
| Housing Material | Nylon |
| Includes Totalizer | Yes |
| Max. Flow Rate | 30 GPM |
| Max. Operating Pressure | 150 psi |
| Max. Temp. | 130°F |
| Max. Viscosity | 40 SUS |
| Media Type | Water |
| Min. Flow Rate | 3 GPM |
| Min. Media Temp. | 14°F |
| Mounting Location | Inline |
| Mounting Orientation | Universal |
| No. Of Batteries | 2 |
| Output Type | 4-20 mA |
| Overall Height | 0.9" |
| Overall Length | 4" |
| Power Source | AAA Batteries |
| Repeatability | -0.5% to +0.5% |
| Rotor Material | Nylon |
| Screen Mesh Size | 55 mesh |
| Series | 01N Series |
| Shaft Material | Tungsten Carbide |
| Termination Type | Not Listed |
| Unit Of Measure | L |
| Wetted Material | Ceramic, Nylon, Stainless Steel, Tungsten Carbide |
| Accuracy % | +/-5% |
| Compatible Flow Materials | Water |
| Flow Rate Range | 3-30 GPM |
| Inlet/outlet Connection | 1" NPT |
| Manufacturer Warranty Length | 2 yrs. |
| Media Temp. Range | 14°F to 130°F |
| Media Temperature (maximum) | 130°F |
| Min. Media Temperature | 14°F |
| Overall Height | 0.9" |
| Overall Length | 4" |
| Product Type | Flow Meter |
| Standards | CE CERTIFIED |
| Termination | Not Listed |
| Wetted Material | 316 Stainless Steel, Ceramic, Ferrite, Nylon, Tungsten Carbide |
| Ship weight (kg) | 0.32 |
| Ship height (cm) | 2.29 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 2.29 |
| HS code | 9026102040 |
| Country of Origin | US |
