GPI
GPIMETERS 01A31GM Electronic Fuel Meter, Turbine, 3 To 30 gpm Flow Range, 1 FNPT | AB4JGT 1YEF6 / 113255-1

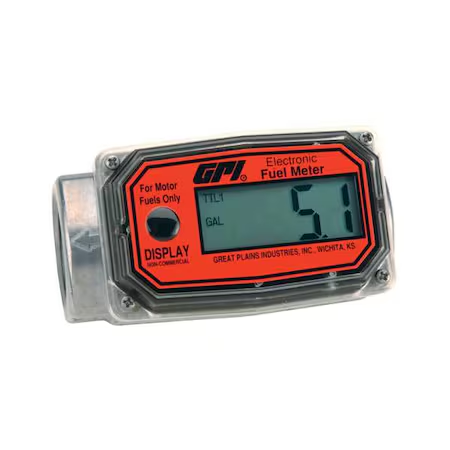

GPI 01A31GM Electronic Fuel Meter, Turbine, 3 To 30 gpm Flow Range, 1 FNPT

In Stock
Item: AB4JGT Model: 01A31GMCross Ref: 1YEF6 / 113255-1
Check Availability
See variants (6)

Get it by May 24, Friday

Product available for flat shipping. Flat shipping price of €9,00 on transactions of value €99,00 or more and aggregate weight below 10 pounds.

Delivery Options:

Int. Economy (6-10 days)
  • Int. Express (5-7 days) ¥3,750
  • Ex-Works Pickup Free
  • Ex-works Pickup
€275.86 /unit
Add To Cart
Request a Quote

Payment Methods

Delivery Partners

Product Specifications:

ItemFlowmeter
Accuracy+/- 5%
Ambient Temp. Range14 to 130 Degrees F
Connection Size1"
Connection TypeFNPT
Display TypeStandard LCD
Display Unitsgal.
Fitting Size1"
Fitting TypeFNPT
Flow MaterialFuels, Lubricants, Petroleum Products
Flow Range3 to 30 gpm
Fluid Temp. Range14 To 130 Deg. F
For Pipe Size1"
Housing MaterialAluminum
Max. Pressure300 psi
Max. Viscosity40 SUS
Power Requirement2 AAA Batteries
Pressure Rating300 PSI
Repeatability0.50%
Rotor MaterialNylon
Sensor TypeMagnetic
Strainer55 Mesh
TypeTurbine

Shipping Info:

Ship weight (kg) 0.63
Ship height (cm)10.16
Ship length (cm)22.86
Ship width (cm)10.16
HS code9026102040
Country of OriginUS

Product Details:

  • Flowmeter with rugged aluminium housing and sealed electronic circuitry for flow rates ranging from 3 to 30 gpm; ideal for gasoline, diesel and kerosene
  • A battery-powered display with auto-off mechanism for extended battery life; turns off after 1 minute of inactivity
  • Can be installed in-line either horizontally, vertically or at the end of the hose adjacent to the nozzle

Product Variants

ProductModelTypeConnection TypeDisplay TypeDisplay UnitsFlow RangeHousing MaterialMax. PressurePower RequirementPrice
GPIMETERS 01A31GM-U Electronic Fuel Meter, 3 To 30 gpm Flow Range, 1 FNPT | AA4ZDZ 13K561 01A31GM-UElectronicFNPT-Liter3 to 30 gpmNylon150 psi-€313.32
GPIMETERS 01A31LM Electronic Fuel Meter, Turbine, 10 To 100 lpm Flow Range, 1 FNPT | AB4JGU 1YEF7 / 113255-2 01A31LMTurbineFNPTStandard LCDLiter10 to 100 lpmAluminum300 psi2 AAA Batteries€286.35
GPIMETERS 113255-102 Diesel Meter, Aluminium | CD8PVY 113255-102TurbineNPTLCDgal./Liter3 to 30 gpmAluminum300 psi2 AAA Alkaline Batteries€286.65
RFQ
GPIMETERS 113255-103 Diesel Meter, Aluminium | CD8PVZ 113255-103TurbineBSPTLCDgal./Liter3 to 30 gpmAluminum300 psi2 AAA Alkaline Batteries€286.65
RFQ
GPIMETERS 01A52LM Fuel Meter, 3 To 30 gpm Flow Range, 1 BSP Female | CD8PWB 113255-12 01A52LM-BSP FemaleLCDLiter10 to 100 lpmAluminum300 psi2 AAA Alkaline Batteries€286.65
GPIMETERS 01A12LM Fuel Meter, 3 To 30 gpm Flow Range, 1 Inch Female Connection | CD8PWD 113255-3 01A12LM-BSPT FemaleLCDLiter10 to 100 lpmAluminum300 psi2 AAA Alkaline Batteries€286.65
