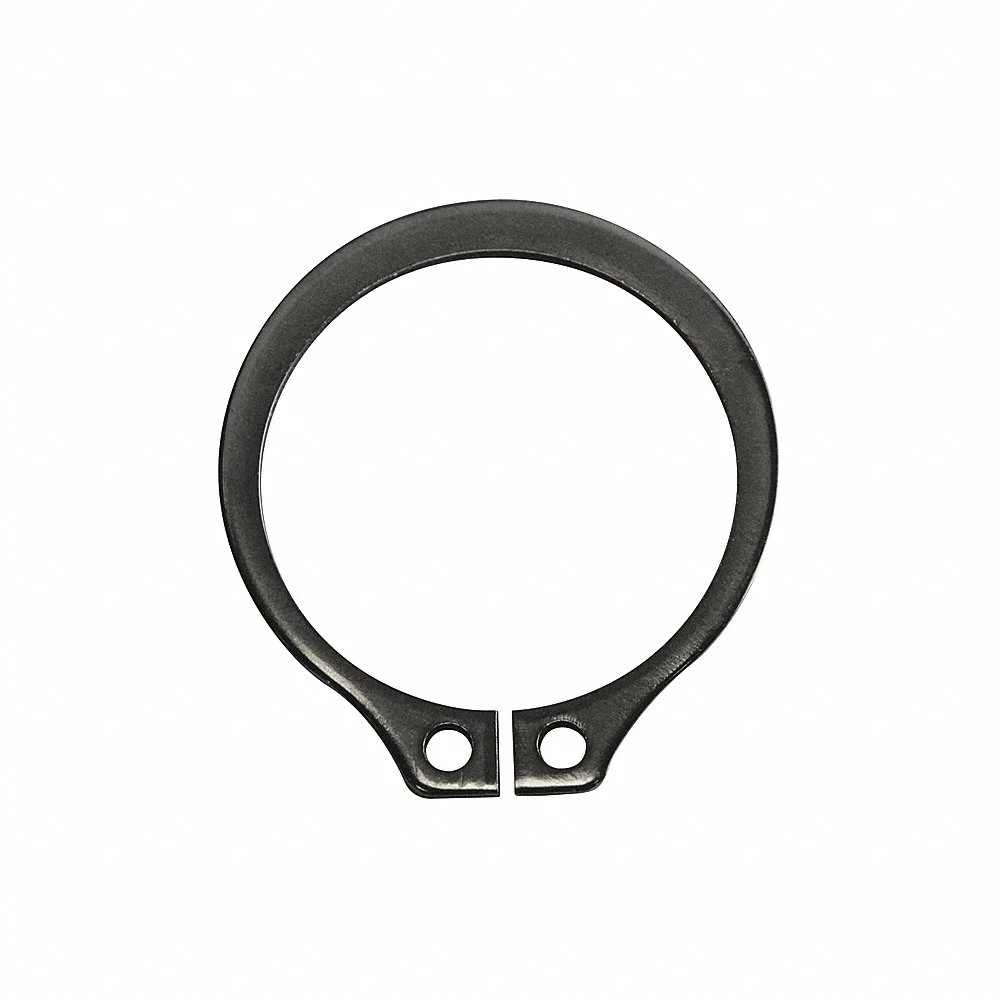

| Item | Retaining Ring |
| Duty | Standard Duty |
| Edge Margin | 1.7 mm |
| Finish | Plain |
| Fits Groove Depth | 0.55 mm |
| Fits Groove Dia. | 23.9 mm |
| Fits Groove Width | 1.3 mm |
| For Shaft Dia. | 25 mm |
| Free Inside Dia. | 23.2 mm |
| Free Inside Dia. Tolerance | -0.42 mm to +0.21 mm |
| Grade | PH 15-7, PH 17-7 |
| Groove Dia. Tolerance | -0.21 mm to 0 mm |
| Hardness | Rockwell 44-51 HRC |
| Hole Dia. | 2 mm |
| Installation Method | Snap-Ring Pliers |
| Load Capacity | 3.7 kN |
| Material | Stainless Steel |
| Max. Allowable Corner Chamfer | 1.5 mm |
| Max. Allowable Corner Radius | 1.5 mm |
| Max. Section Size | 3 mm |
| Retaining Ring Style | Stamped |
| Rpm Limits | 25000 RPM |
| System Of Measurement | Metric |
| Thickness | 1.2 mm |
| Thickness Tolerance | -0.06 mm to 0 mm |
| Type | External |
| Dimensional Standards | DIN 471 |
| Fits Groove Diameter | 23.9 mm |
| Fits Shaft Diameter | 25 mm |
| Free Inside Diameter | 23.2 mm |
| Free Outside Diameter | 23.2 mm |
| Groove Diameter Tolerance | +0.000, -0.210 mm |
| Material Grade/class | 18-8 |
| Pack Size | Small Pack |
| Product Type | External |
| Resistance Properties | Corrosion Resistant |
| Ring Sub-type | Standard |
| Ring Type | External Retaining Ring |
| Standards | ROHS COMPLIANT |
| Ship height (cm) | 0.12 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
