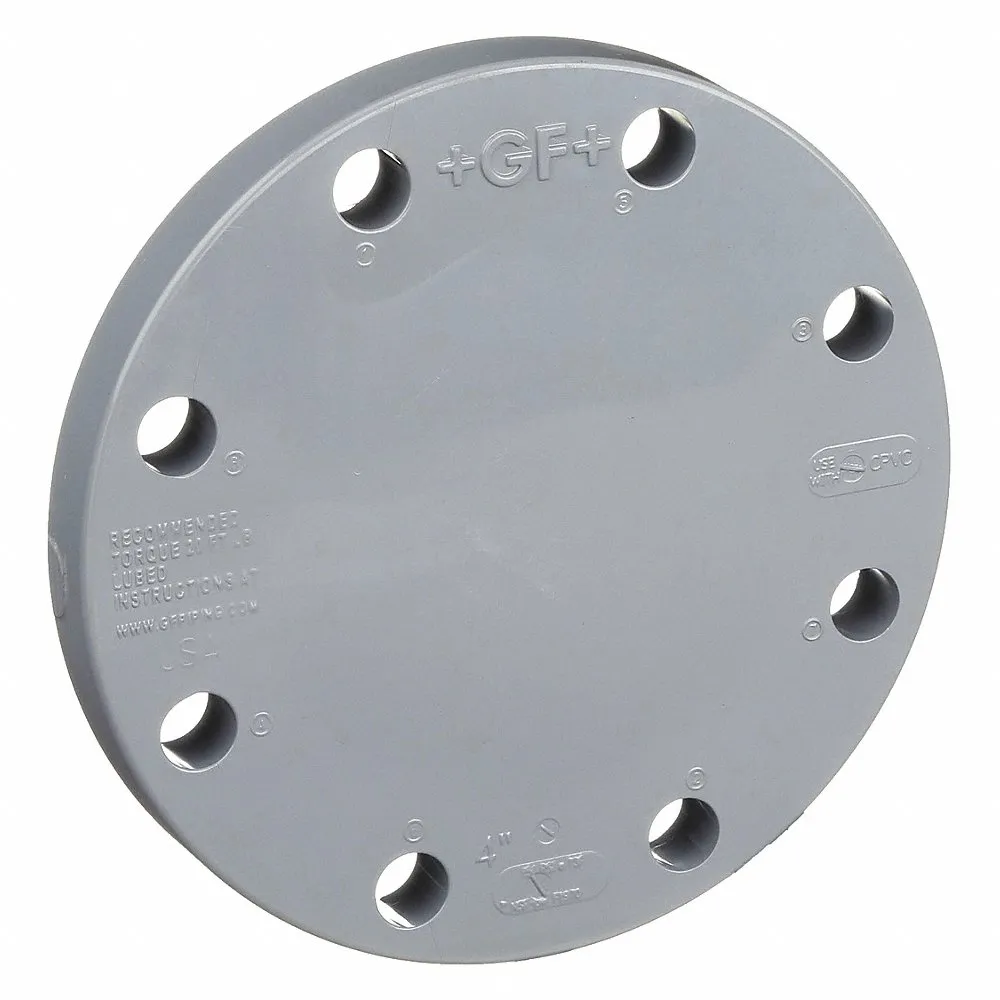

| Item | Blind Flange |
| Body Material | CPVC |
| Color | Gray |
| Green Certification Or Other Recognition | RoHS.png |
| Max. Pressure | 150 psi |
| Max. Temp. | 176°F |
| Number Of Holes | 8 |
| Outside Dia. | 11" |
| Pipe Size | 6" |
| Schedule | 80 |
| Application | Non-Potable Water, Potable Water |
| Basic Fitting Shape | Flange |
| Bolt Circle Diameter | 9 1/2" |
| Bolt Hole Diameter | 13/16" |
| Class | Class 150 |
| Connection Surface | Flat |
| Flange Outside Diameter | 11" |
| Flange Thickness | 1 1/8" |
| For Pipe Schedule | 80 |
| Low Lead Certified Standard | NSF61 |
| Maximum Operating Pressure | 150 psi |
| Nominal Pipe Size | 6" |
| Number Of Bolt Holes | 8 |
| Overall Length | 1 3/8" |
| Pipe Fitting Material | CPVC |
| Specific Fitting Shape | Blind Flange |
| Standards | NSF |
| Temp. Range | 176°F |
| Ship weight (kg) | 1.71 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 37.16 |
| Ship width (cm) | 27.94 |
| HS code | 3917400000 |
| Product | Model | Item | Max. Pressure | Max. Temp. | Number Of Holes | Outside Dia. | Pipe Size | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
9853-020 | Blind Flange | 150 psi@73 Degrees F | 210 Degrees F | 4 | 6" | 2" | €49.79 | |
|
9853-030 | Blind Flange | 150 psi@73 Degrees F | 210 Degrees F | 4 | 7.5" | 3" | €93.89 | |
 |
9853-040 | Blind Flange | 150 psi@73 Degrees F | 210 Degrees F | 8 | 9" | 4" | €128.08 | |
|
9853-010 | Blind Flange | 150 psi@73 Degrees F | 210 Degrees F | 4 | 4.25" | 1" | €35.01 | |
|
9853-015 | Blind Flange | 150 psi@73 Degrees F | 210 Degrees F | 4 | 5" | 1.5" | €46.42 | |
|
9853-025 | Blind Flange | 150 psi@73 Degrees F | 210 Degrees F | 4 | 7" | 2.5" | €72.14 | |
 |
9851-060 | Flange | 150 psi | 176 Degrees F | 8 | 11" | 6" | €214.14 |
