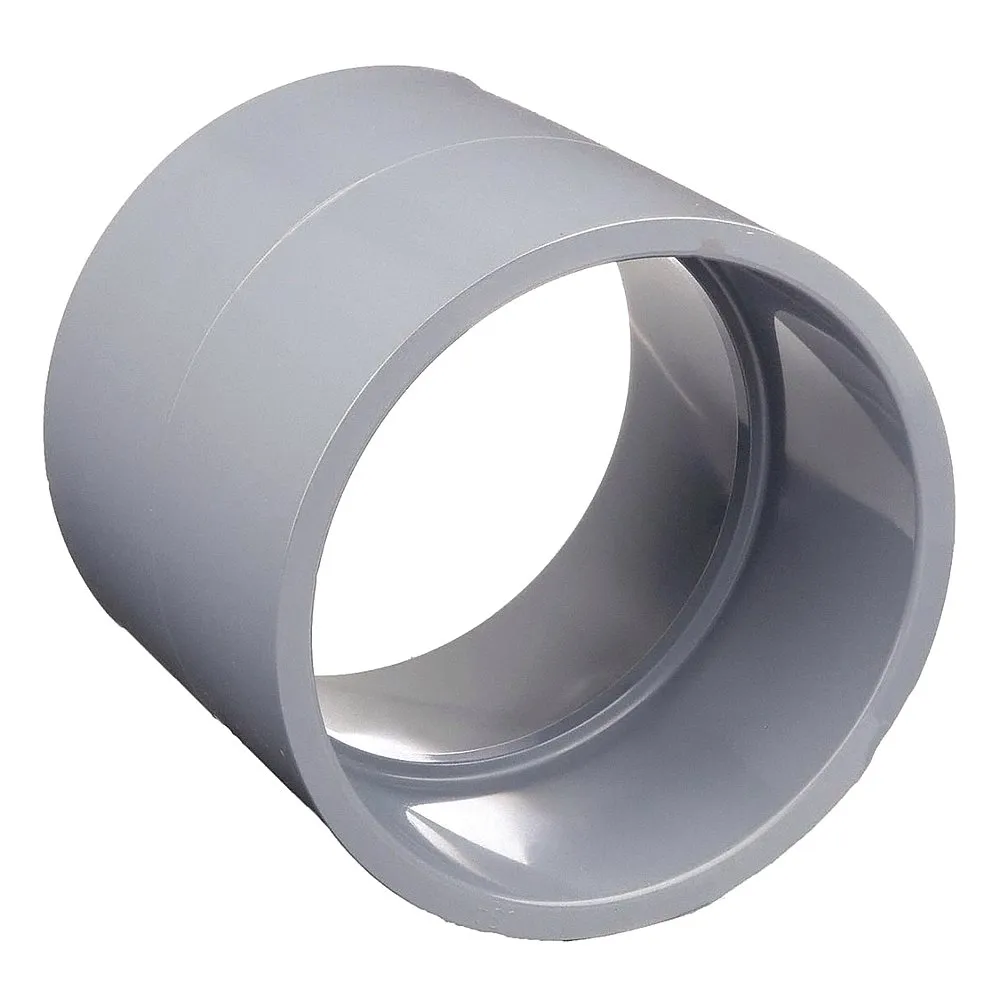

| Item | Coupling |
| Body Material | CPVC |
| Color | Gray |
| Connection Type | Socket |
| Green Certification Or Other Recognition | RoHS.png |
| Max. Pressure | 150 psi |
| Max. Temp. | 176°F |
| Pipe Size | 8" |
| Schedule | 80 |
| Application | Non-Potable Water, Potable Water |
| Basic Fitting Shape | Coupling |
| Fitting Side A Gender | Female |
| Fitting Side A Nominal Pipe Size | 8" |
| Fitting Side A Outside Diameter | 9 3/4" |
| Fitting Side A Type | Socket |
| Fitting Side B Gender | Female |
| Fitting Side B Nominal Pipe Size | 8" |
| Fitting Side B Outside Diameter | 9 3/4" |
| Fitting Side B Type | Socket |
| For Pipe Outside Diameter | 8" |
| For Pipe Schedule | 80 |
| Includes Plug | No |
| Includes Pre-applied Thread Sealant | No |
| Includes Seal | No |
| Includes Shield | No |
| Low Lead Certified Standard | NSF 61 |
| Maximum Operating Pressure | 250 psi @ 73°F |
| Overall Length | 8 3/8" |
| Pipe Fitting Material | CPVC |
| Specific Fitting Shape | Coupling |
| Standards | ASTM F439 |
| Temp. Range | 32°F to 200°F |
| Ship weight (kg) | 3.22 |
| Ship height (cm) | 31.75 |
| Ship length (cm) | 45.72 |
| Ship width (cm) | 27.94 |
| HS code | 3917400000 |
| Model | Connection Type | Max. Pressure | Max. Temp. | Pipe Size | Price | |
|---|---|---|---|---|---|---|
| 9829-025 | Socket | 425 psi@73 Degrees F | 210 Degrees F | 2.5" | €54.37 | |
| 9829-030 | Socket x Socket | 375 psi@73 Degrees F | 210 Degrees F | 3" | €57.22 | |
| 9829-040 | Socket | 324 psi@73 Degrees F | 210 Degrees F | 4" | €74.92 | |
| 9830-030 | FNPT x FNPT | 187 psi@73 Degrees F | 210 Degrees F | 3" | €87.97 | |
| 9830-040 | FNPT x FNPT | 162 psi@73 Degrees F | 210 Degrees F | 4" | €176.00 | |
| 9829-060 | Socket | 150 psi | 176 Degrees F | 6" | €113.52 | |
| 9830-012 | Fnpt | 260 psi@73 Degrees F | 210 Degrees F | 1.25" | €30.99 |
