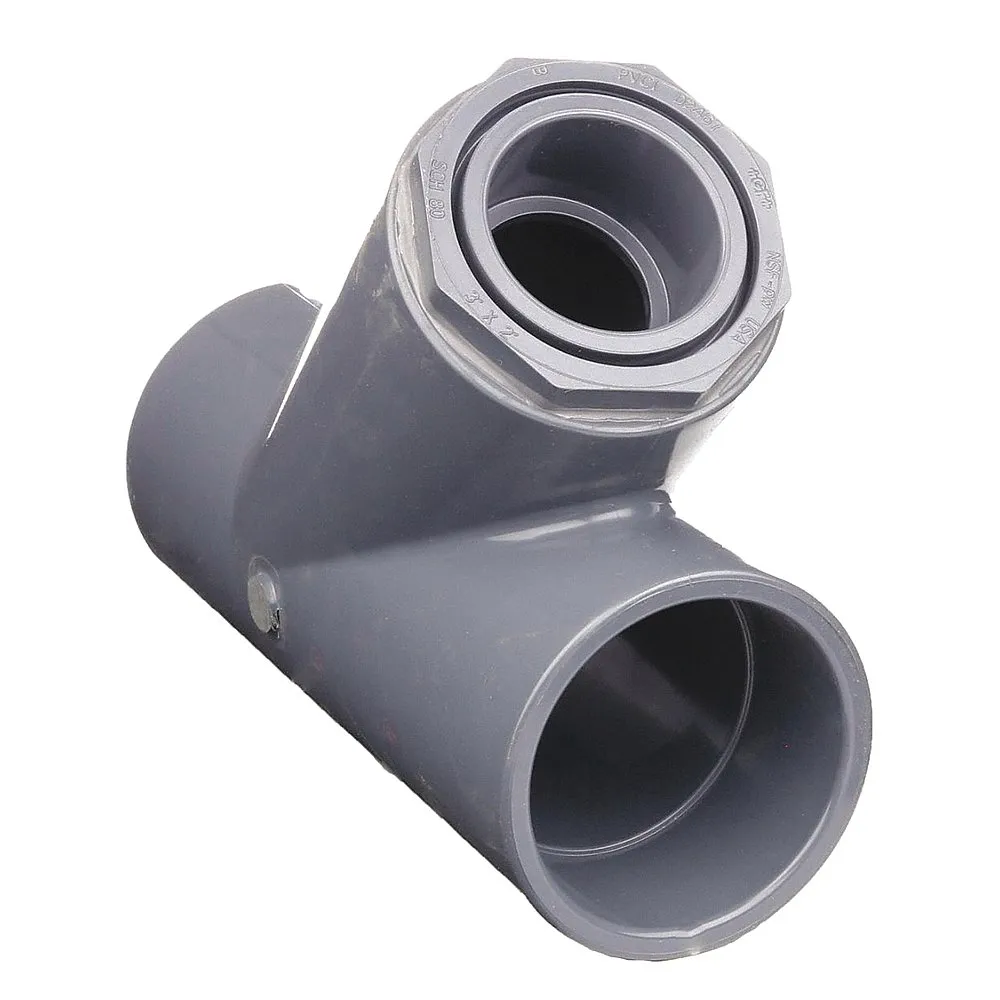

GEORG FISCHER 870-080 Wye 8 x 8 x 8 Inch Socket Pvc
Get it by Monday, Jun 16
€575.35 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Wye |
| Body Material | PVC |
| Color | Gray |
| Connection Type | Socket x Socket x Socket |
| Green Certification Or Other Recognition | RoHS.png |
| Max. Temp. | 140°F |
| Pipe Size | 8" x 8" x 8" |
| Schedule | 80 |
| Application | Non-Potable Water, Potable Water |
| Basic Fitting Shape | Wye |
| Fitting Side A Gender | Female |
| Fitting Side A Nominal Pipe Size | 8" |
| Fitting Side A Outside Diameter | 9 11/16" |
| Fitting Side A Type | Socket |
| Fitting Side B Gender | Female |
| Fitting Side B Nominal Pipe Size | 8" |
| Fitting Side B Outside Diameter | 9 11/16" |
| Fitting Side B Type | Socket |
| Fitting Side C Gender | Female |
| Fitting Side C Nominal Pipe Size | 8" |
| Fitting Side C Outside Diameter | 9 11/16" |
| Fitting Side C Type | Socket |
| For Pipe Outside Diameter | 8" |
| For Pipe Schedule | 80 |
| Includes Plug | No |
| Includes Pre-applied Thread Sealant | No |
| Includes Seal | No |
| Includes Shield | No |
| Low Lead Certified Standard | NSF 61 |
| Maximum Operating Pressure | 100 psi @ 73°F |
| Overall Length | 21 5/16" |
| Pipe Fitting Material | PVC |
| Specific Fitting Shape | Wye |
| Standards | ASTM D2467 |
| Temp. Range | 32°F to 140°F |
| Ship weight (kg) | 12.87 |
| Ship height (cm) | 50.8 |
| Ship length (cm) | 55.88 |
| Ship width (cm) | 37.16 |
| HS code | 3917400000 |
| Model | Body Material | Connection Type | Max. Pressure | Max. Temp. | Pipe Size | Price | |
|---|---|---|---|---|---|---|---|
| 9870-015 | CPVC | Socket | 471 psi@73 Degrees F | 210 Degrees F | 1.5" | €47.78 | |
| 9870-020 | CPVC | Socket | 404 psi@73 Degrees F | 210 Degrees F | 2" | €114.03 | |
| 9870-030 | CPVC | Socket | 375 psi@73 Degrees F | 210 Degrees F | 3" | €308.71 | |
| 9870-040 | CPVC | Socket | 324 psi@73 Degrees F | 210 Degrees F | 4" | €325.83 | |
| 9870-060 | CPVC | Socket | 150 psi | 176 Degrees F | 6" | €432.97 | |
| 9870-251FB | CPVC | Socket | 150 psi | 176 Degrees F | 2" x 2" x 1-1/2" | €147.41 | |
| 9870-337FB | CPVC | Socket | 150 psi | 176 Degrees F | 3" | €335.89 |
