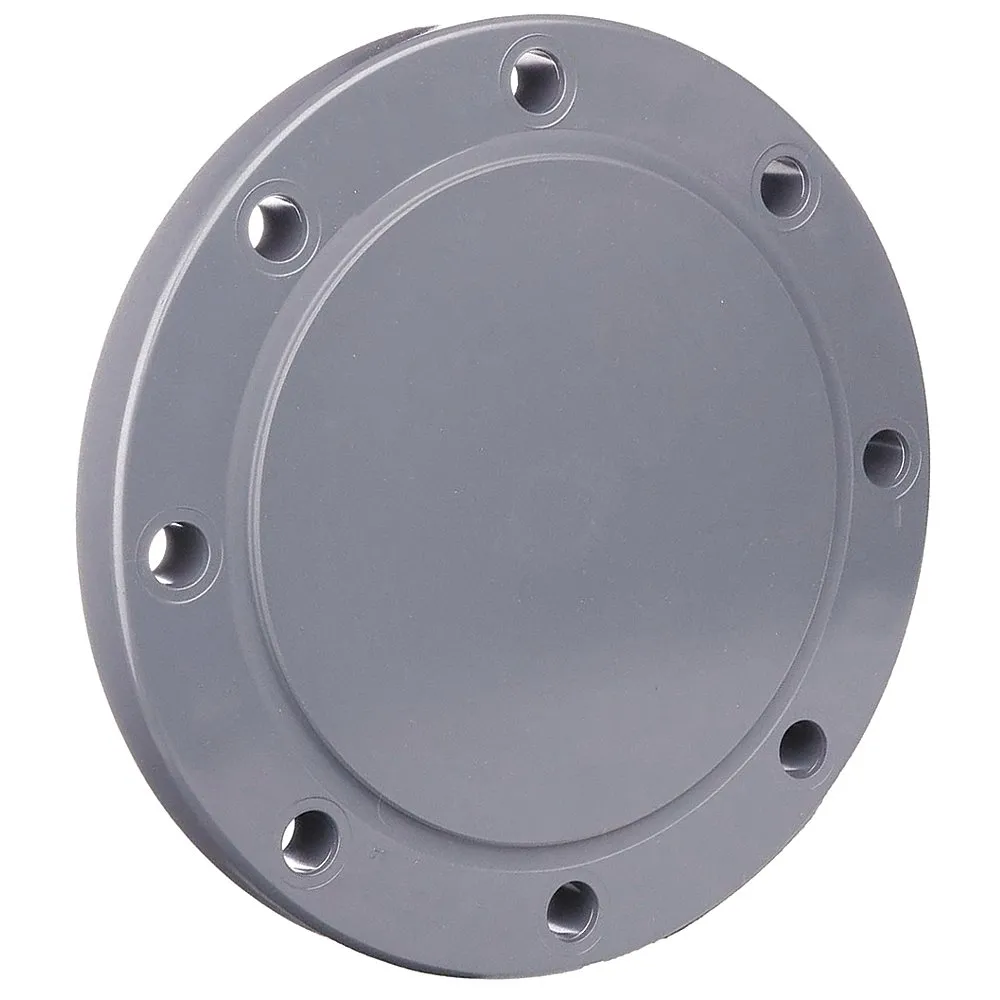

| Item | Blind Flange |
| Body Material | PVC |
| Color | Gray |
| Connection Type | Socket |
| Green Certification Or Other Recognition | RoHS.png |
| Max. Temp. | 140°F |
| Number Of Holes | 8 |
| Outside Dia. | 13 1/2" |
| Pipe Size | 8" |
| Schedule | 80 |
| Application | Non-Potable Water, Potable Water |
| Basic Fitting Shape | Flange |
| Bolt Circle Diameter | 11 3/4" |
| Bolt Hole Diameter | 13/16" |
| Class | Class 150 |
| Connection Surface | Flat |
| Fitting Connection Type | Socket |
| Flange Outside Diameter | 13 1/2" |
| Flange Thickness | 1 7/16" |
| For Pipe Schedule | 80 |
| Low Lead Certified Standard | NSF61 |
| Maximum Operating Pressure | 150 psi |
| Nominal Pipe Size | 8" |
| Number Of Bolt Holes | 8 |
| Overall Length | 1 9/16" |
| Pipe Fitting Material | PVC |
| Specific Fitting Shape | Blind Flange |
| Standards | NSF |
| Temp. Range | 140°F |
| Ship weight (kg) | 2.64 |
| Ship height (cm) | 34.93 |
| Ship length (cm) | 35.26 |
| Ship width (cm) | 23.65 |
| HS code | 3917400000 |
