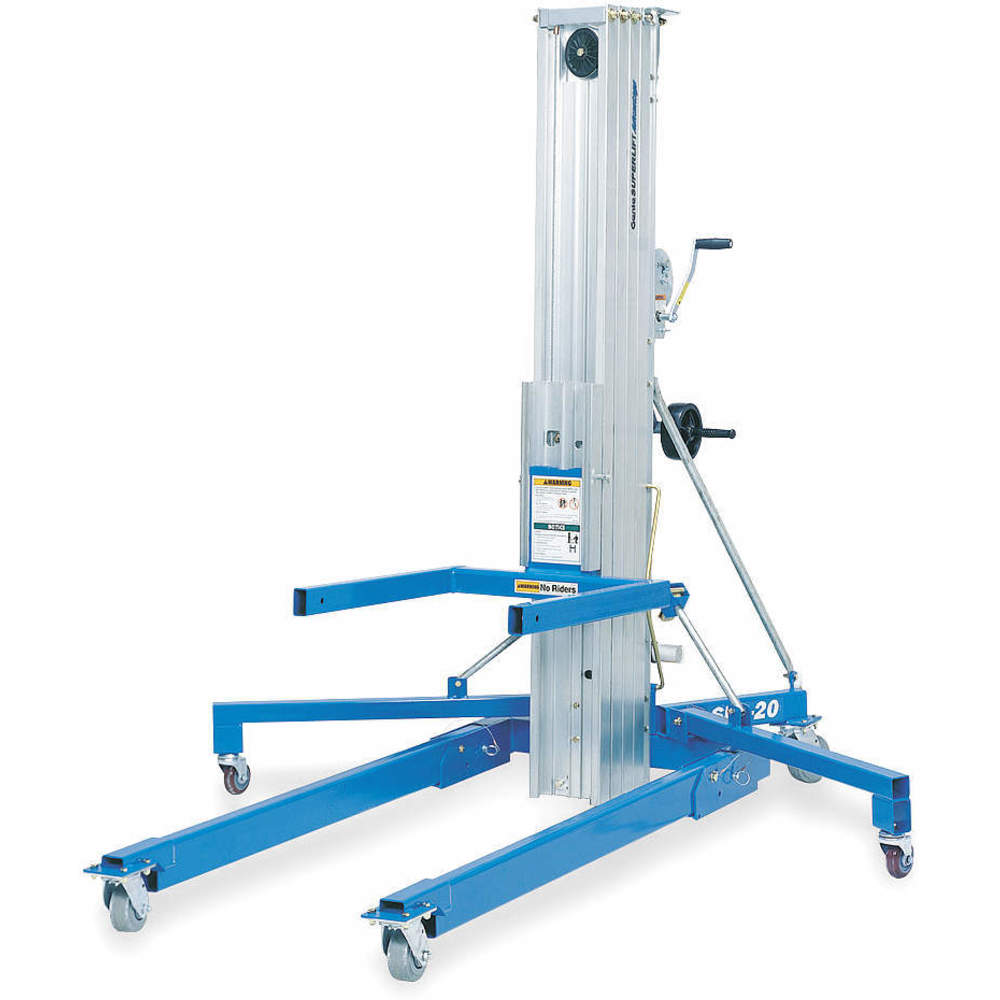

| Item | Material Lift |
| Base | Straddle With Stabilizer |
| Base Legs Outside Dia. | 31 1/2" |
| Caster Wheel Type | (4) Swivel |
| Fork Length | 27 1/2" |
| Fork Width | 23 1/2" |
| Frame Material | Steel |
| Front Wheel Dia. | 4" |
| Lifting Height Forks Down | 234" |
| Lifting Height Forks Up | 254 1/2" |
| Lifting Height Max. | 254 1/2" |
| Load Capacity | 800 lbs. |
| Load Center | 18" |
| Min. Lifting Height | 234" |
| Overall Height | 78 1/2" |
| Overall Length | 29" |
| Overall Width | 31 1/2" |
| Powered By | Manual Winch |
| Rear Caster Dia. | 5" |
| Ship weight (kg) | 206.55 |
| Ship height (cm) | 213.36 |
| Ship length (cm) | 81.28 |
| Ship width (cm) | 81.28 |
| HS code | 8428900290 |
| Country of Origin | US |
