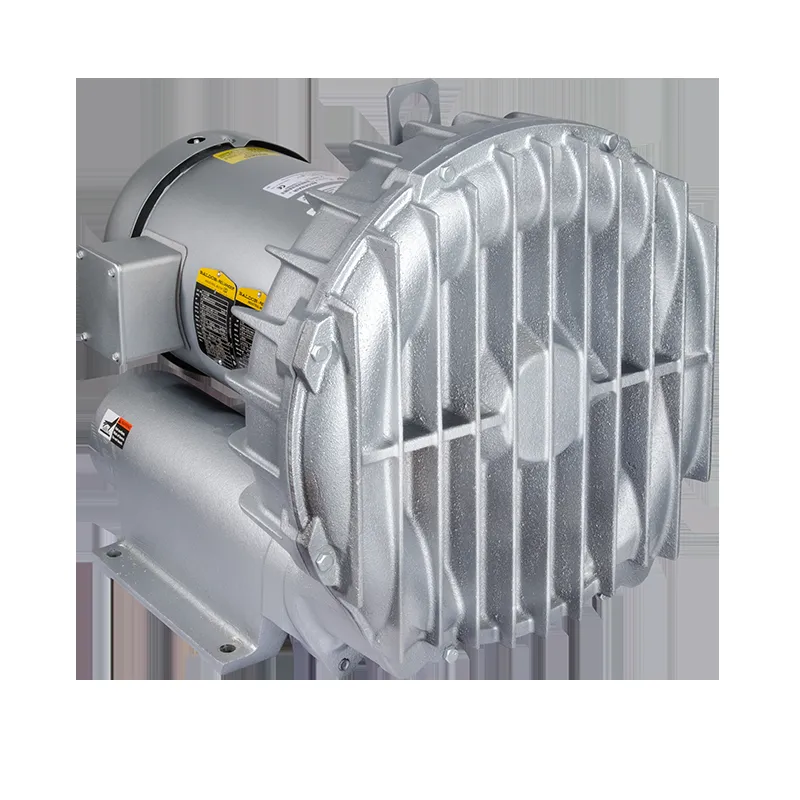

| Item | Regenerative Blower |
| Duty Cycle | Continuous |
| Frequency | 50/60 Hz |
| Housing Material | Cast Iron |
| Inlet Gender | Female |
| Inlet Size | 2 1/2" |
| Max. Ambient Temp. | 104°F |
| Max. Flow Rate | 425 CFM |
| Max. Operating Pressure | 125 in. hg |
| Max. Vacuum | 110 in. wc |
| Maximum Flow Rate Vacuum | 425 CFM @ 110 in. hg |
| Noise Level | 78 dBA |
| Outlet Gender | Female |
| Outlet Size | 2 1/2" |
| Overall Depth | 22 8/25" |
| Overall Height | 20.02" |
| Overall Length | 22 8/25" |
| Phase | 3 |
| Power Output | 10 hp |
| Thermal Protection | No |
| Voltage | 190-220/380-415/208-230/460V |
| Wattage | 7.46 kW |
| Current Rating | 25.8-24.6/12.3A |
| Enclosure Rating | NEMA 215 TCZ |
| Enclosure Type | Totally Enclosed Fan-Cooled |
| Inlet Type | NPT |
| Maximum Air Temperature Rise | 160°F |
| Maximum Ambient Temperature | 104°F |
| Maximum Flow Rate | 425 CFM |
| Maximum Operating Pressure | 125 in. wc |
| Maximum Speed | 2850/3450 RPM |
| Maximum Vacuum | 110 in. wc |
| Outlet Type | NPT |
| Output Power | 10 hp |
| Series | Gast Series |
| Standards | CE, UKCA |
| Weight | 321 lbs. |
| Ship weight (kg) | 144.45 |
| Ship height (cm) | 62.23 |
| Ship length (cm) | 59.69 |
| Ship width (cm) | 64.77 |
