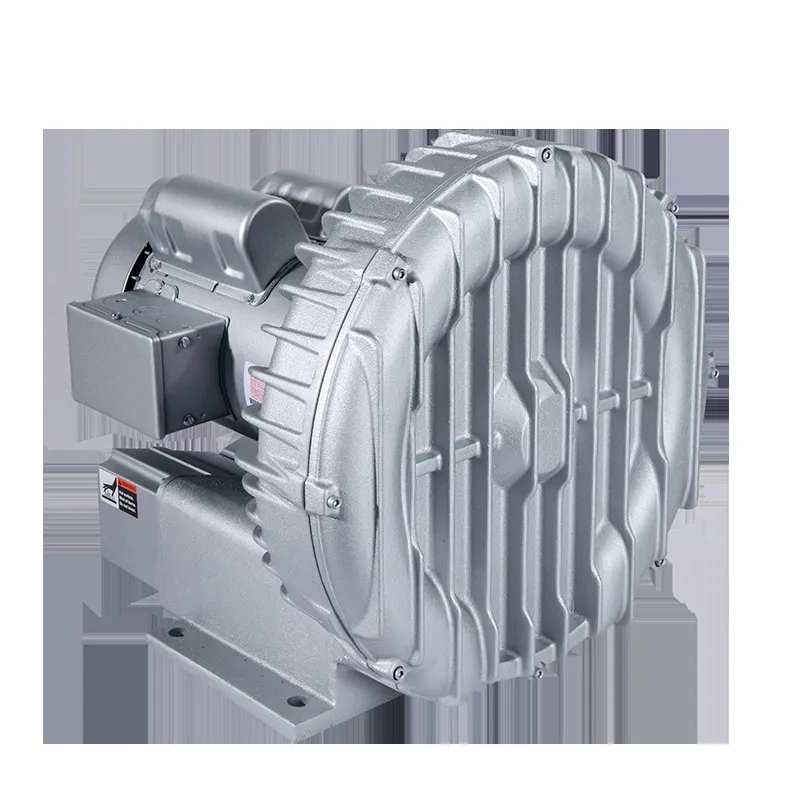

| Item | Regenerative Blower |
| Duty Cycle | Continuous |
| Frequency | 50/60 Hz |
| Housing Material | Aluminum |
| Inlet Gender | Female |
| Inlet Size | 2" |
| Max. Ambient Temp. | 104°F |
| Max. Flow Rate | 220 CFM |
| Max. Operating Pressure | 80 in. hg |
| Max. Vacuum | 80 in. wc |
| Maximum Flow Rate Vacuum | 220 CFM @ 80 in. hg |
| Mfr. Series | GAST |
| Noise Level | 72 dBA |
| Outlet Gender | Female |
| Outlet Size | 2" |
| Outlet Type | NPT |
| Overall Depth | 17.21" |
| Overall Height | 15.34" |
| Overall Length | 17.21" |
| Phase | 3 |
| Power Output | 3 1/2 hp |
| Thermal Protection | Yes |
| Voltage | 190-220/380-415V/208-230/460V |
| Wattage | 2.6 kW |
| Current Rating | 9.2-8.4/4.2A |
| Enclosure Rating | NEMA 56C |
| Enclosure Type | Totally Enclosed Fan-Cooled |
| Inlet Type | NPT |
| Maximum Air Temperature Rise | 100°F |
| Maximum Ambient Temperature | 104°F |
| Maximum Flow Rate | 220 CFM |
| Maximum Operating Pressure | 80 in. wc |
| Maximum Speed | 2850/3450 RPM |
| Maximum Vacuum | 80 in. wc |
| Output Power | 3 1/2 hp |
| Series | Gast Series |
| Standards | CE, CSA |
| Weight | 82 lbs. |
| Ship weight (kg) | 36.9 |
| Ship height (cm) | 113.67 |
| Ship length (cm) | 111.13 |
| Ship width (cm) | 116.21 |
