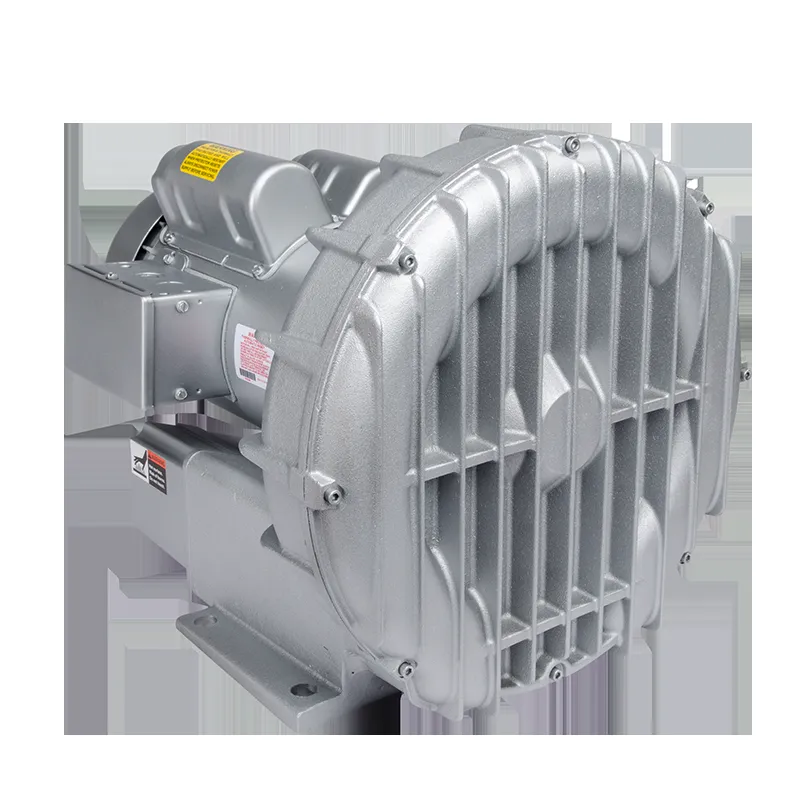

| Item | Regenerative Blower |
| Duty Cycle | Continuous |
| Frequency | 50/60 Hz |
| Housing Material | Aluminum |
| Inlet Gender | Female |
| Inlet Size | 1 1/2" |
| Max. Ambient Temp. | 104°F |
| Max. Flow Rate | 157 CFM |
| Max. Operating Pressure | 65 in. hg |
| Max. Vacuum | 60 in. wc |
| Maximum Flow Rate Vacuum | 157 CFM @ 60 in. hg |
| Mfr. Series | GAST |
| Noise Level | 75 dBA |
| Outlet Gender | Female |
| Outlet Size | 1 1/2" |
| Outlet Type | NPT |
| Overall Depth | 14.66" |
| Overall Height | 13 4/5" |
| Overall Length | 14.66" |
| Phase | 3 |
| Power Output | 2 1/2 hp |
| Thermal Protection | Yes |
| Voltage | 190-220/380-415/208-230/460V |
| Wattage | 1.86 kW |
| Current Rating | 6.6-6.2/3.1A |
| Enclosure Rating | NEMA 56C |
| Enclosure Type | Totally Enclosed Fan-Cooled |
| Inlet Type | NPT |
| Maximum Air Temperature Rise | 90°F |
| Maximum Ambient Temperature | 104°F |
| Maximum Flow Rate | 157 CFM |
| Maximum Operating Pressure | 65 in. wc |
| Maximum Speed | 2850/3450 RPM |
| Maximum Vacuum | 60 in. wc |
| Output Power | 2 1/2 hp |
| Series | Gast Series |
| Standards | CE, CSA |
| Weight | 65 lbs. |
| Ship weight (kg) | 29.25 |
| Ship height (cm) | 92.92 |
| Ship length (cm) | 90.38 |
| Ship width (cm) | 95.46 |
