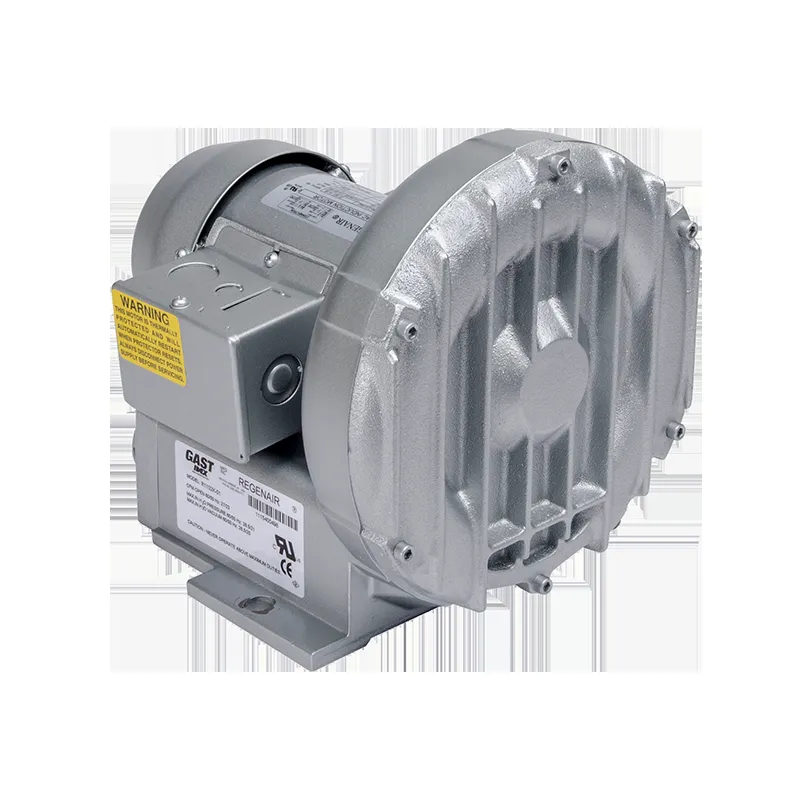

| Item | Regenerative Blower |
| Current Rating | Not Applicable |
| Current Rating @ 50 Hz | Not Applicable |
| Duty Cycle | Continuous |
| Enclosure Rating | Not Applicable |
| Frequency | 50/60 Hz |
| Housing Material | Aluminum |
| Inlet Gender | Female |
| Inlet Size | 1" |
| Max. Ambient Temp. | 104°F |
| Max. Flow Rate | 27 CFM |
| Max. Operating Pressure | 28 in. hg |
| Max. Vacuum | 26.5 in. wc |
| Maximum Flow Rate Vacuum | 27 CFM @ 26.5 in. hg |
| Mfr. Series | GAST |
| Noise Level | 57 dBA |
| Outlet Gender | Female |
| Outlet Size | 1" |
| Outlet Type | NPT |
| Overall Depth | 9 3/25" |
| Overall Height | 8.53" |
| Overall Length | 9 3/25" |
| Power Output | 3/25 hp |
| Thermal Protection | Yes |
| Voltage | 110/220-240/115/208-230V |
| Wattage | 0.09 kW |
| Enclosure Type | Totally Enclosed Fan-Cooled |
| Inlet Type | NPT |
| Maximum Air Temperature Rise | 60°F |
| Maximum Ambient Temperature | 104°F |
| Maximum Flow Rate | 27 CFM |
| Maximum Operating Pressure | 28 in. wc |
| Maximum Speed | 2890/3450 RPM |
| Maximum Vacuum | 26.5 in. wc |
| Output Power | 3/25 hp |
| Phase | Single |
| Series | Gast Series |
| Standards | CE, CSA, UL LISTED |
| Weight | 16 lbs. |
| Ship weight (kg) | 7.2 |
| Ship height (cm) | 62.23 |
| Ship length (cm) | 59.69 |
| Ship width (cm) | 64.77 |
