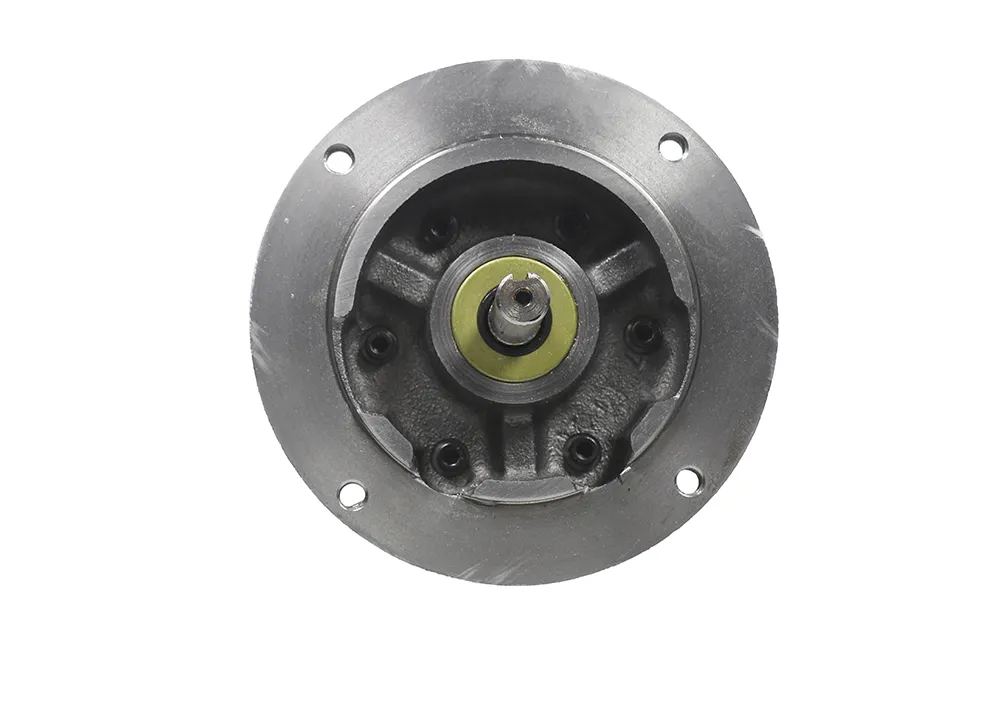

| Item | Air Motor |
| Key Type: | M30-KEYSQ 1 1/4 |
| Max Air Consumption: | 78 cfm (132.52 m3h) |
| Max Power: | 1.7 hp (1.27 kW) |
| Max Pressure: | 7 bar (101.53 psi) |
| Max Sound Level: | 87 dB(A) |
| Max Speed: | 3000 rpm |
| Max Torque: | 56 in-lb (6.33 N m) |
| Mount: | FLANGE |
| Output Shaft Type: | Keyed |
| Port Size And Type: | 1/4" NPT |
| Regulatory Approval: | CE, ATEX |
| Rotation: | Reversible |
| Shaft Size: | 0.5 in (12.7 mm) |
| Stainless Steel: | NO |
| Starting Torque @ 80psi: | 28 in-lb (3.16 N m) |
| Torque Max Speed: | 36 in-lb (4.07 N m) |
| Vanes: | 8 |
| Ship weight (kg) | 5.56 |
| Ship height (cm) | 17.15 |
| Ship length (cm) | 16.51 |
| Ship width (cm) | 16.51 |
| Country of Origin | US |
