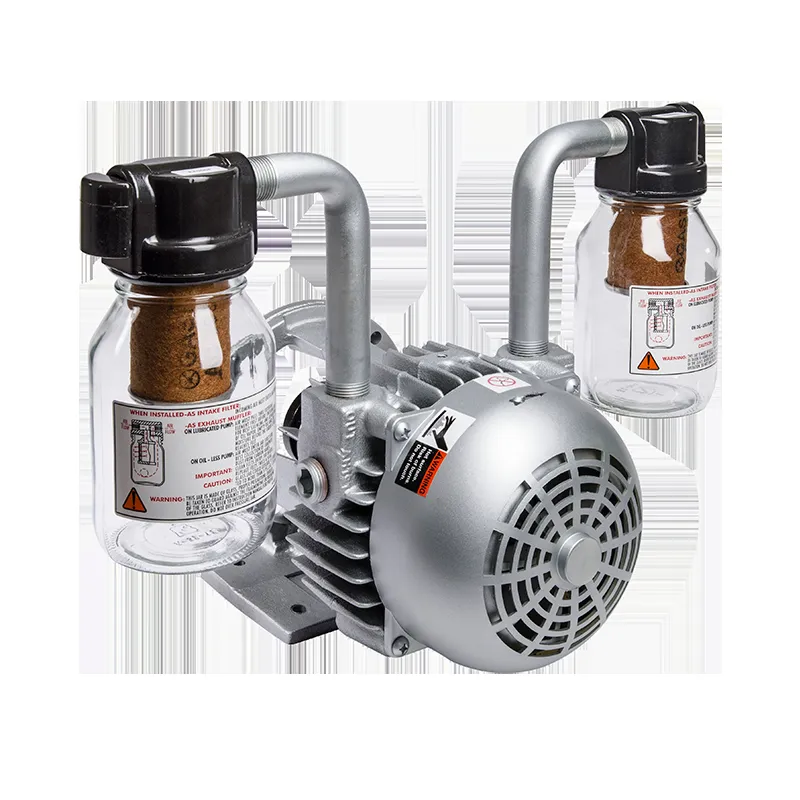

| Item | Vacuum Pump |
| Duty Cycle | Continuous |
| Environment | Laboratory Environment, Medical Environment |
| Fluid Compatibility | Air |
| Free Air Flow Rate | 17/21 CFM |
| Frequency | 50/60 Hz |
| Includes | Oil Reservoir, Pressure Gauge, Pressure/Vacuum Lubricator |
| Inlet Size | 3/4" |
| Max. Continuous Pressure | 15 psi |
| Max. Operating Temp. | 104°F |
| Max. Speed | 1725 RPM |
| Max. Vacuum | 28 in. hg |
| Min. Operating Temp. | 33.8°F |
| Outlet Size | 3/4" |
| Outlet Type | NPT |
| Overall Height | 13.23" |
| Overall Length | 18" |
| Overall Width | 11 12/25" |
| Power Output | 1 1/2 hp |
| Sound Level | 80 dBA |
| Thermal Protection | No |
| Wattage | 1.1 kW |
| Weight | 55 lbs. |
| Bearing Type | Shielded Ball |
| Compressor/pump Enclosure Material | Grey Iron |
| Filter Element Material | Polypropylene |
| Housing Material | Grey Iron |
| Inlet Gender | Female |
| Inlet Type | NPT |
| Life Expectancy | 4000 hrs. |
| Maximum Continuous Pressure | 15 psi |
| Maximum Intermittent Pressure | 15 psi |
| Maximum Operating Temperature | 104°F |
| Maximum Pressure | 15 psi |
| Maximum Speed | 1725 RPM |
| Maximum Vacuum | 21 in. hg |
| Minimum Operating Temperature | 33.8°F |
| Outlet Gender | Female |
| Output Power | 1 1/2 hp |
| Power Source | Separate Drive |
| Pump Type | Rotary Vane |
| Series | Gast Series |
| Ship weight (kg) | 24.75 |
| Ship height (cm) | 67.89 |
| Ship length (cm) | 65.35 |
| Ship width (cm) | 70.43 |
