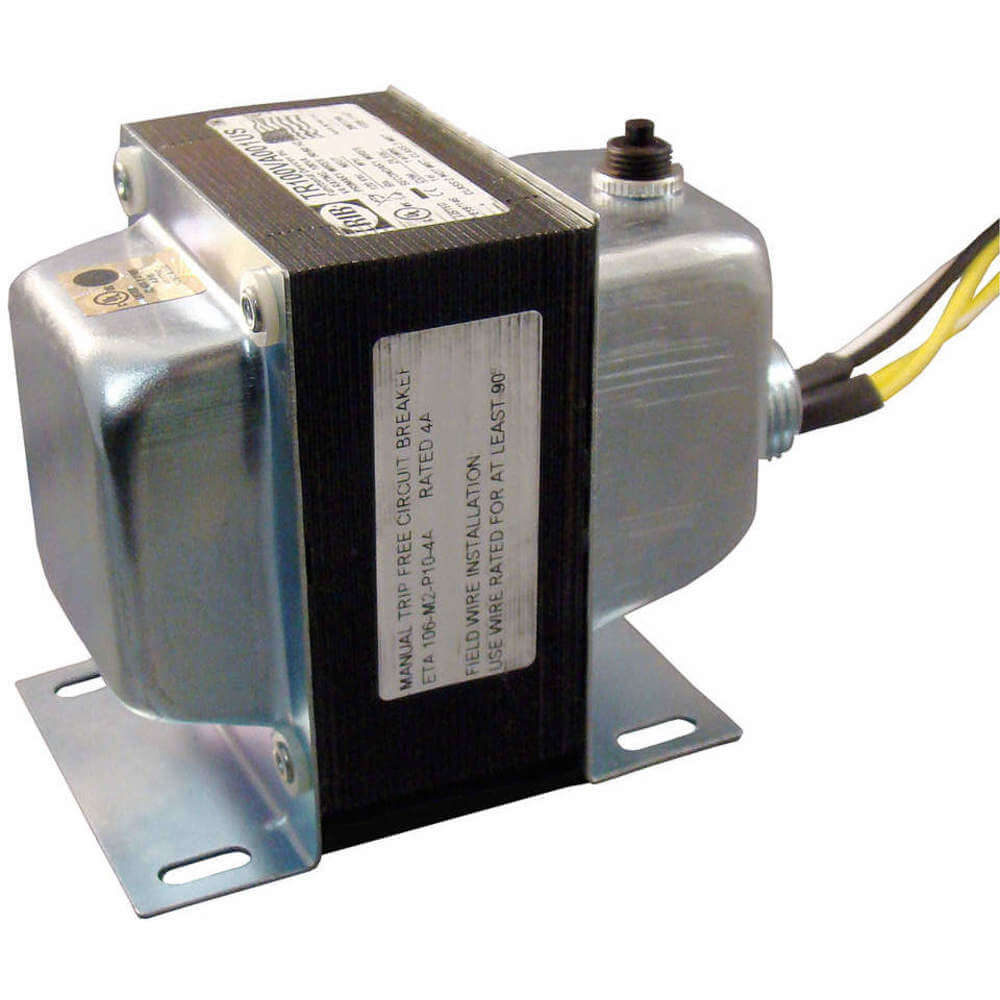

FUNCTIONAL DEVICES INC / RIB TR100VA001US Class 2 Transformer 24vac 100 Va 1 Ph
Get it by Wednesday, Jun 18
€63.70 /unit
Add To Cart
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | Class 2 Transformer |
| Depth | 6" |
| Enclosure Finish | No Finish |
| Enclosure Rating | Not Rated |
| Enclosure Type | Indoor |
| Frequency | 50/60 Hz |
| Height | 3.38" |
| Input Voltage | 120V AC |
| Mounting Type | Foot |
| Output Voltage | 24V AC |
| Phase | 1 |
| Temp. Rise | Not Rated |
| Width | 2 22/25" |
| Connection - Primary | Wire Lead |
| Connection - Secondary | Wire Leads |
| Enclosure Style | Open |
| Includes | Circuit Breaker |
| Manufacturers Warranty Length | 5 yrs. |
| Mounting | Foot, Hub |
| Nema Enclosure Rating | Not Rated |
| Operating Temperature - Maximum | 140°F |
| Operating Temperature - Minimum | -30°F |
| Overall Depth | 4.07" |
| Overall Height | 3.02" |
| Overall Width | 2 1/2" |
| Power Rating | 96 VA |
| Protective Device | Circuit Breaker |
| Standards | CE, ROHS, UL LISTED |
| Temperature Rise | Not Rated |
| Wire Lead Length - Primary | 8" |
| Wire Lead Length - Secondary | 8" |
| Ship weight (kg) | 1.6 |
| Ship height (cm) | 9.4 |
| Ship length (cm) | 17.53 |
| Ship width (cm) | 7.62 |
| HS code | 8504314065 |
| Country of Origin | US |
| Product | Model | Depth | Enclosure Rating | Enclosure Type | Height | Input Voltage | Item | Mounting | Output Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TR50VA005 | 2.5" | Not Rated | Indoor | 3" | 120 VAC | Class 2 Transformer | Foot or 1/2" NPT Hub | 24 VAC | €35.50 | |
 |
TR50VA014 | 2.5" | Not Rated | Indoor | 3.06" | 277 VAC | Class 2 Transformer | Foot or 1/2" NPT Hub | 24 VAC | €40.87 | |
 |
TR50VA015 | 2.5" | Not Rated | Indoor | 3.06" | 120/208/240/277/480 VAC | Class 2 Transformer | Foot or 1/2" NPT Hub | 24 VAC | €41.10 | |
 |
TR75VA001 | 2.5" | Not Rated | Indoor | 3" | 120 VAC | Class 2 Transformer | Foot or 1/2" NPT Hub | 24 VAC | €60.55 | |
 |
TR75VA005 | 2.5" | Not Rated | Indoor | 3.03" | 120/208/240/480 VAC | Class 2 Transformer | Foot or 1/2" NPT Hub | 24 VAC | €68.38 | |
 |
TR100VA001 | 2.5" | Not Rated | Indoor | 3.03" | 120 VAC | Class 2 Transformer | Foot or 1/2" NPT Hub | 24 VAC | €65.68 | |
 |
TR50VA001 | 2.178" | Not Rated | Indoor | 2.879" | 120 VAC | Class 2 Transformer | Foot or 1/2" NPT Hub | 24 VAC | €25.09 |
