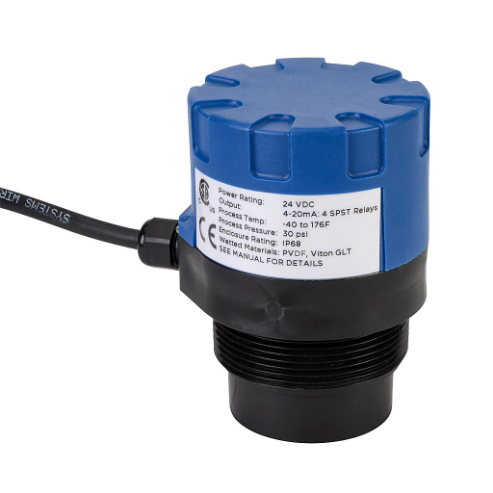

| Item | Level Sensor |
| Antenna Dia. | 2 3/8" |
| Beam Width | 2" |
| Classification | General Purpose |
| Configuration | Webcal |
| Connection Size | 2" |
| Deadband | 4" |
| Display | None |
| Enclosure Material | Polypropylene |
| For Media Type | Chemicals, Oil, Wastewater, Water |
| Gasket Material | Viton |
| Height | 4" |
| Input Voltage | 14-28V |
| Material | PVDF |
| Max. Operating Pressure | 30 psi |
| Max. Pressure | 30 psi |
| Motor Enclosure Design | NEMA 6P |
| Mounting Type | NPT |
| Operating Frequency | 80 kHz |
| Operating Temp. Range | -40°F to +176°F |
| Overall Dia. | 2 3/4" |
| Overall Height | 4" |
| Overall Width | 2.9" |
| Range | 4" to 9.8 ft. |
| Resolution | 0.039" |
| Spatial Resolution | 0.039" |
| Width | 2.9" |
| Accuracy | +/-0.2% of Range |
| Antenna Diameter | 2 3/8" |
| Connection | 2" NPT |
| Connection Type | NPT |
| Dead Band | 4" |
| Display Type | None |
| Enclosure Rating | NEMA 6P |
| Max. Media Temperature | 176°F |
| Max. Voltage | 28V DC |
| Media Temp. Range | -40°F to 176°F |
| Media Temperature (minimum) | -40°F |
| Output Voltage Range | 4-20 mA |
| Output Wire Configuration | 2-Wire |
| Overall Diameter | 2 3/4" |
| Standards | CSA CERTIFIED |
| Tank Seal Material | Viton |
| Ship weight (kg) | 0.65 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 6.99 |
| Ship width (cm) | 7.37 |
| HS code | 902610 |
| Country of Origin | US |
