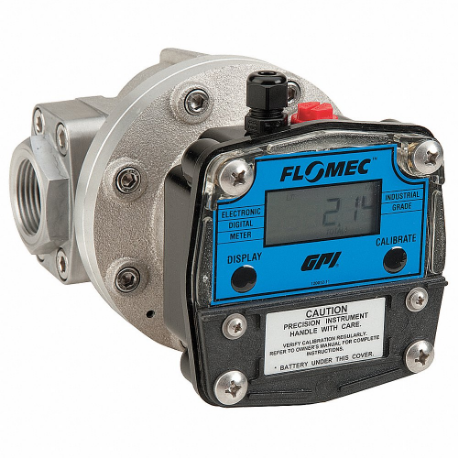

| Item | Electronic Flowmeter |
| Connection Size | 1 1/2" |
| Connection Type | FNPT |
| Display Type | LCD |
| Display Units | Cu M, Gallons, Kilograms, Liters, Pounds |
| Flow Range | 4-66 GPM |
| Flow Range @ Gph | 240-3960 GPH |
| Flow Rate Range | 4-66 GPM |
| Fluid Temp. | -4°F to +250°F |
| Frequency Range | 14.1-233.2 Hz |
| Housing Material | Stainless Steel |
| Housing Material Grade | Grade 316L |
| Max. Pressure | 435 psi |
| Max. Viscosity | 4600 SUS |
| O-ring Material | PTFE |
| Output Type | NPN Open Collector Pulse |
| Overall Length | 7 1/2" |
| Power Required | 3.6V DC |
| Rotor Type | PPS Oval Gears |
| Sensor Type | Reed Switch, Hall Effect |
| Type | Oval Gear |
| Wetted Material | Stainless Steel, PPS, PTFE |
| Wetted Material Grade | Grade 316 |
| Accuracy % | 0.5% |
| Compatible Flow Materials | Chemicals, High Viscosity, Lubricants, Oil, Thick Fluids |
| Inlet/outlet Connection | 1 1/2" FNPT |
| Max. Operating Pressure | 435 psi |
| O-ring Materials | PTFE |
| Overall Length | 7 1/2" |
| Termination | Not Listed |
| Wetted Material | 316 Stainless Steel, PPS, PTFE |
