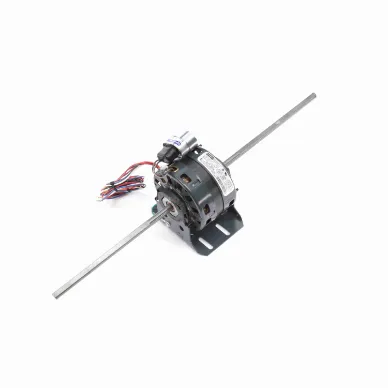

| Item | Motor |
| Capacitor Required | Included |
| Motor Application | Room Air Conditioner |
| Motor Design | Permanent Split Capacitor |
| Motor Service Factor | 1 |
| Motor Thermal Protection | Automatic |
| Number Of Shafts | 1 |
| Number Of Speeds | 4 |
| Ambient Temperature | 40C |
| Ce | N |
| Csa | Y |
| Current | 1.0/0.7/0.4/0.3 A |
| Drive End Bearing | Sleeve |
| Duty | Continuous |
| Electrical Type | Permanent Split Capacitor |
| Enclosure | Open Air Over |
| Frame | 42 |
| Frame Material | Na |
| Frequency | 60 Hz |
| Insulation Class | B |
| Mounting | Resilient Base |
| Number Of Speeds | 4 |
| Opp Drive End Bearing | Sleeve |
| Output Hp | 1/10-1/15-1/25-1/35 Hp |
| Output Kw | 0.07 kW |
| Overall Length | 24.68 in |
| Phase | 1 |
| Poles | 6 |
| Rotation | Clockwise Lead End |
| Service Factor | 1 |
| Shaft Diameter | 0.500 in |
| Shaft Extension | 10.75 in |
| Shaft Type | Flat |
| Speed | 1050 rpm |
| Starting Method | Across The Line |
| Thermal Protection | Automatic |
| Ul | Recognized |
| Voltage | 208/230 V |
| Ship weight (kg) | 4.77 |
| Ship height (cm) | 65.41 |
| Ship length (cm) | 18.75 |
| Ship width (cm) | 15.57 |
| Country of Origin | MX |
