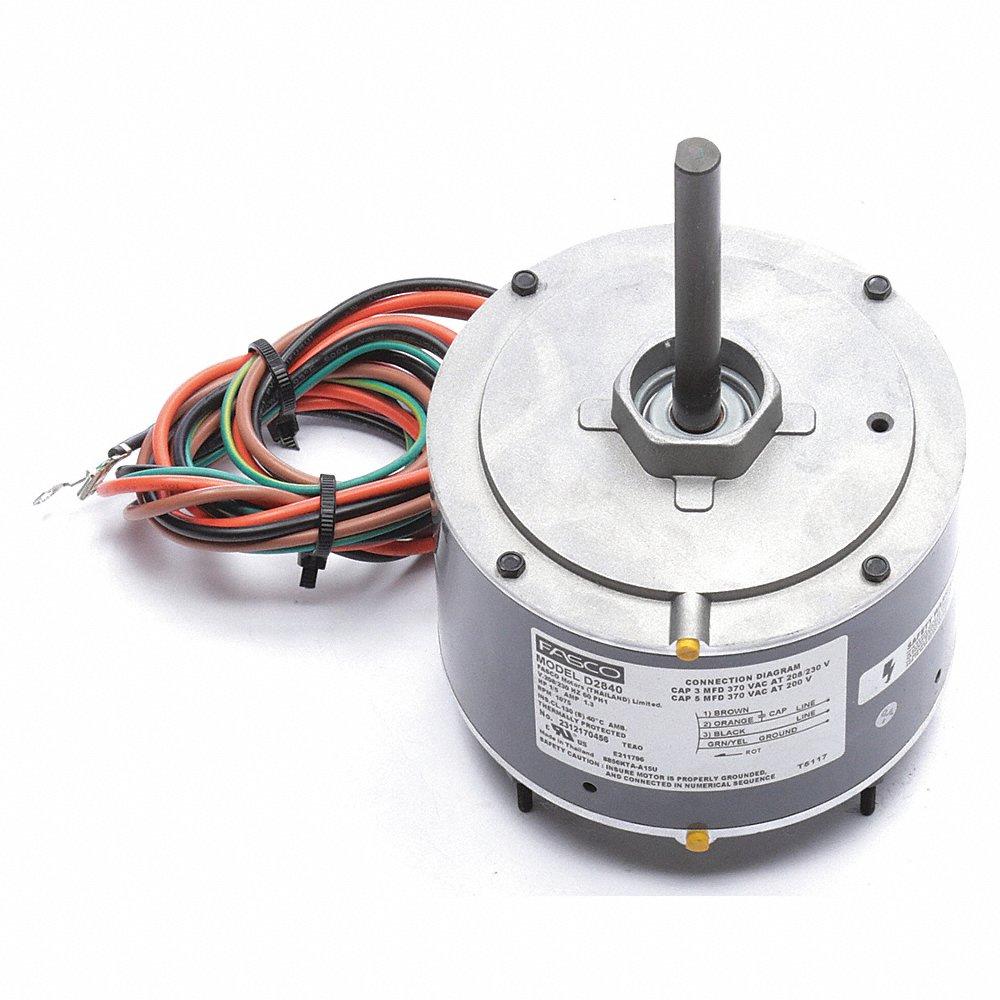

| Item | Condenser Fan Motor |
| Ambient Temp. | 40°C |
| Bearing Type | Sleeve |
| Body Dia. | 5.7" |
| Bolt Circle Dia. | 5 1/4" |
| Capacitor Required | 2MDV2, 2MDV4 |
| Dia. | 5.7" |
| Diameter | 5.7" |
| Duty Cycle | Continuous |
| Enclosure Type | Totally Enclosed Air Over |
| Frame | 48 |
| Frame Material | Steel |
| Full Load Amps | 1.3A |
| Hp | 1/5 hp |
| Length | 8 9/16" |
| Length Less Shaft | 4 15/16" |
| Motor Application | Air Compressor , OEM Replacement |
| Motor Design | Permanent Split Capacitor |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Service Factor | 1 |
| Motor Shaft Rotation | Clockwise Shaft End |
| Motor Sub Application | Condenser Fan |
| Motor Thermal Protection | Auto |
| Motor Type | Permanent Split Capacitor |
| Mounting Stud Length | 4 13/32" |
| Mounting Stud Pattern | 3 11/16" x 3 11/16" |
| Mounting Stud Size | #8-32 |
| Mounting Type | Extended Studs |
| No. Of Shafts | 1 |
| No. Of Speeds | 1 |
| Number Of Shafts | 1 |
| Number Of Speeds | 1 |
| Oem Replacement Brand | Rheem/Ruud |
| Overall Length | 8 9/16" |
| Replacement For | Rheem Mfr. No. RUUD 51-21853-82 |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 4 3/16" |
| Shaft Type | Flat |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230V AC |
| Ins. Class | Class B |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 104°F |
| Motor Bearings | Sleeve |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Mounting Type | Stud |
| Motor Shaft Design | Flat |
| Nameplate Rpm | 1075 RPM |
| Phase | Single |
| Standards | CSA CERTIFIED, UL RECOGNIZED |
| Stud Size | #8 32 x 4 13/32" |
| Weight | 10 lbs. |
| Ship weight (kg) | 4.41 |
| Ship height (cm) | 14.3 |
| Ship length (cm) | 38.1 |
| Ship width (cm) | 14.3 |
| Country of Origin | TH |
