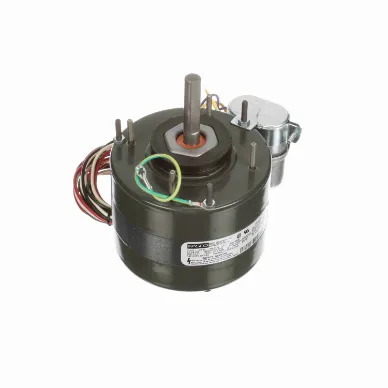

| Item | Motor |
| Ambient Temperature | 40C |
| Ce | N |
| Csa | Y |
| Current | 2.3-1.1 A |
| Drive End Bearing | Sleeve |
| Duty | Continuous |
| Electrical Type | Permanent Split Capacitor |
| Enclosure | Open Air Over |
| Frame | 42 |
| Frame Material | Na |
| Frequency | 60 Hz |
| Insulation Class | B |
| Mounting | Extended Studs |
| Number Of Speeds | 2 |
| Opp Drive End Bearing | Sleeve |
| Output Hp | 1/8-1/15 Hp |
| Output Kw | 0.10 kW |
| Overall Length | 7.34 in |
| Phase | 1 |
| Poles | 6 |
| Rotation | Reversible |
| Service Factor | 1 |
| Shaft Diameter | 0.500 in |
| Shaft Extension | 3 in |
| Shaft Type | Flat |
| Speed | 1075 rpm |
| Starting Method | Across The Line |
| Thermal Protection | Automatic |
| Ul | Recognized |
| Voltage | 115 V |
| Ship weight (kg) | 4.23 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 17.15 |
| Ship width (cm) | 14.3 |
| Country of Origin | MX |
