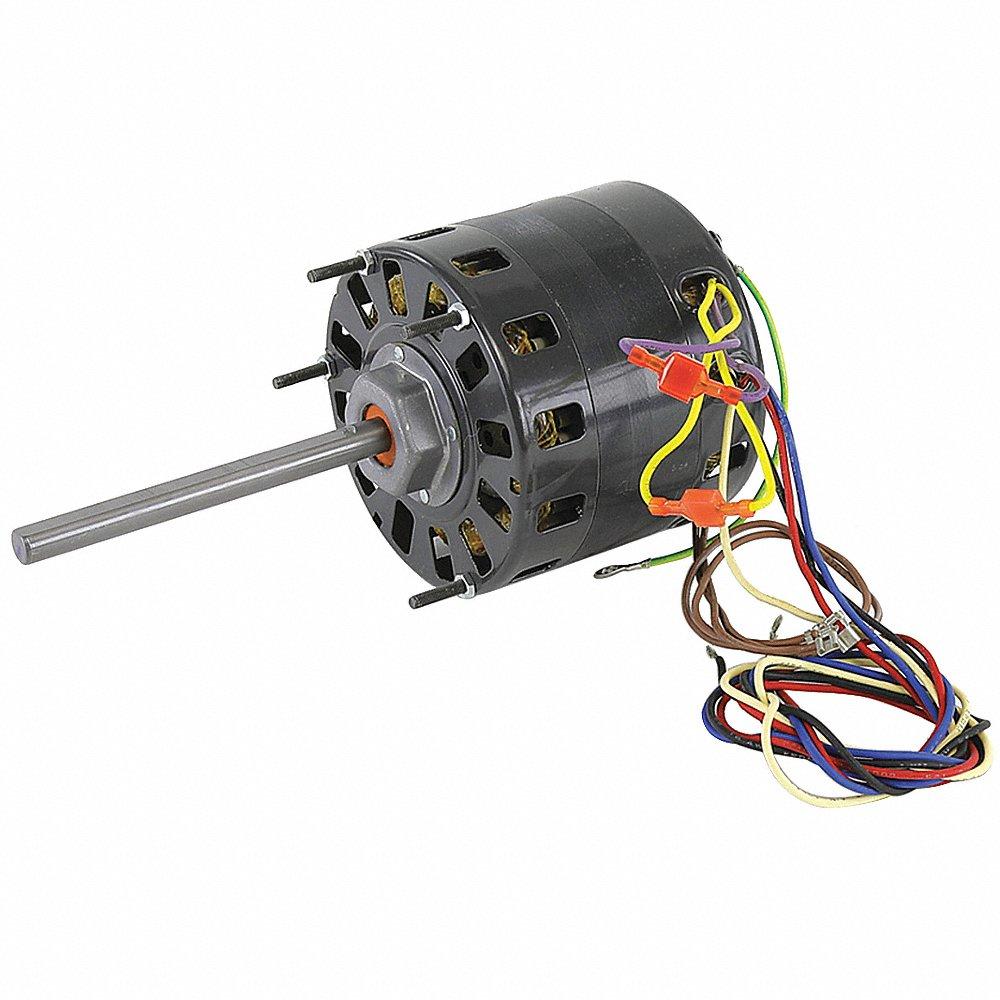

| Item | Motor |
| Fits Brand | Fasco |
| Hp | 1/4 hp, 1/5 hp, 1/6 hp |
| Nameplate Rpm | 1050 RPM |
| Phase | 1 |
| Voltage | 115V AC |
| Application | Fan |
| Body Diameter | 5" |
| Capacitor Required | Yes |
| Frame | 42 |
| Full Load Current | 4.1/3.2/2.5A |
| Horsepower | 1/4 hp, 1/5 hp, 1/6 hp |
| Insulation Class | Class B |
| Motor Application | Fan |
| Motor Bearings | Sleeve |
| Motor Design | 1-Phase |
| Motor Mounting Type | Extended Studs |
| Motor Shaft Rotation | Reversible |
| Number Of Speeds | 3 |
| Overall Length | 11" |
| Product Type | Motor |
| Rpm Range | 1001-1100 RPM |
| Shaft Diameter | 1/2" |
| Shaft Length | 6" |
| Standards | CSA CERTIFIED, UL RECOGNIZED |
| Ship weight (kg) | 5.25 |
| Ship height (cm) | 38.1 |
| Ship length (cm) | 13.03 |
| Ship width (cm) | 13.03 |
| Country of Origin | MX |
