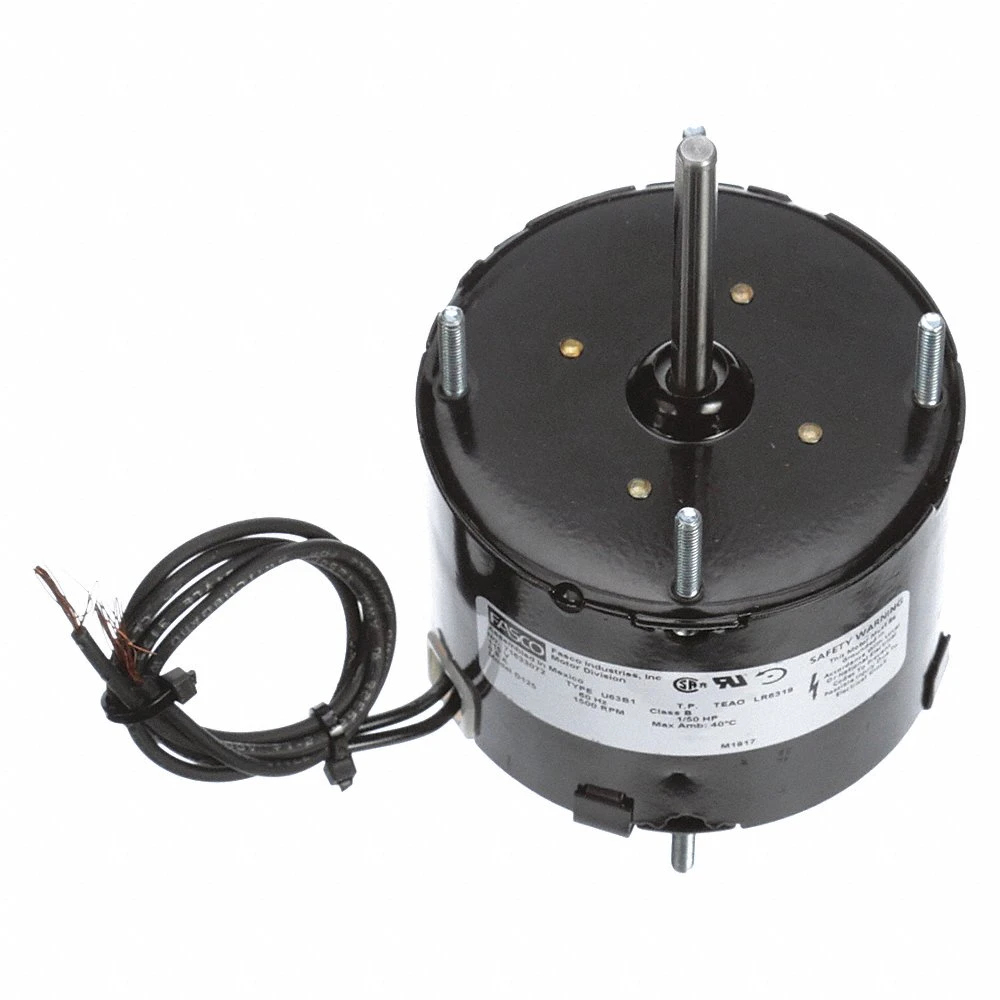

| Item | HVAC Motor |
| Application | HVAC/R |
| Bearing Type | Sleeve |
| Body Dia. | 3 5/16" |
| Bolt Circle Dia. | 2 7/8" |
| Capacitor Required | No |
| Duty Cycle | Continuous |
| Frame | 3.3" |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 0.8A |
| Hp | 1/50 hp |
| Insulation Class | Class B |
| Lead Length | 12" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Direct Drive Fan/Blower |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Shaft Rotation | Counter Clockwise Shaft End |
| Motor Type | Shaded Pole |
| Mounting | Stud |
| Mounting Type | Extended Studs |
| Nameplate Rpm | 1500 RPM |
| No. Of Shafts | 1 |
| No. Of Speeds | 1 |
| No. Of Studs | 4 |
| Overall Length | 5 1/16" |
| Phase | 1 |
| Service Factor | 1 |
| Shaft Dia. | 1/4" |
| Shaft Length | 2 1/4" |
| Shaft Type | Flat |
| Stud Location | Both Ends |
| Stud Pattern | 2 7/8" x 2 7/8" |
| Stud Size | #8-32 |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115V AC |
| Hz | 60 Hz |
| Ins. Class | Class B |
| Length Less Shaft | 3" |
| Motor Bearings | Sleeve |
| Motor Design | Shaded Pole |
| Motor Frame Material | Steel |
| Motor Mounting Type | Ring/Stud |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
| Motor Sub Application | Direct Drive Fan/Blower |
| Motor Thermal Protection | Auto |
| Mounting Holes | (8) #8-32 |
| Mounting Stud Location | 4/Both Ends |
| Mounting Stud Pattern | 2 7/8" x 2 7/8" |
| Number Of Shafts | 1 |
| Standards | CSA CERTIFIED, UL RECOGNIZED |
| Weight | 3 lbs. |
| Ship weight (kg) | 1.26 |
| Ship height (cm) | 8.59 |
| Ship length (cm) | 20.32 |
| Ship width (cm) | 8.59 |
| HS code | 8501104020 |
| Country of Origin | MX |
| Product | Model | Bearings | Duty | Enclosure | Full Load Amps | HP | Hz | Insulation Class | Length Less Shaft | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
D200 | Sleeve | Continuous Air-Over | Open Ventilated | 0.62 | 1/85 | 60 | A | 2" | €120.64 | |
|
D201 | Sleeve | Continuous Air-Over | Open Ventilated | 0.62 | 1/85 | 60 | A | 2.25" | €124.97 | |
 |
D608 | Sleeve | Continuous Air-Over | Open Ventilated | .64/.53 | 1/50 | 50/60 | B | 3.75" | €166.30 | |
 |
D209 | Sleeve | Continuous Air-Over | Open Ventilated | 1.12 | 1/30 | 60 | A | 3.625" | €161.32 | |
 |
D208 | Sleeve | Continuous Air-Over | Open Ventilated | 1.12 | 1/30 | 60 | A | 3.625" | €155.22 | |
 |
D214 | Sleeve | Continuous Air-Over | Totally Enclosed Fan-Cooled | 1.7 | 1/20 | 60 | A | 4.625" | €274.23 | |
|
D215 | Ball | Continuous Air-Over | Totally Enclosed Fan-Cooled | 1.7 | 1/20 | 60 | A | 4.625" | €310.49 |
