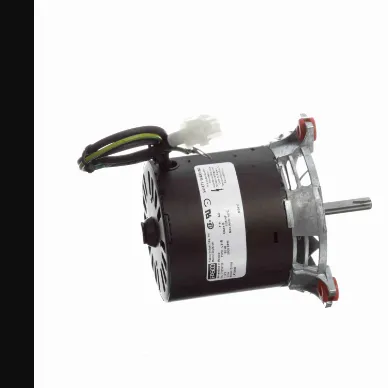

| Item | Motor |
| Motor Application | Draft Inducer |
| Motor Design | Shaded Pole |
| Motor Service Factor | 1 |
| Motor Shaft Rotation | Counterclockwise Shaft End |
| Motor Thermal Protection | Included |
| Number Of Shafts | 1 |
| Ambient Temperature | 40C |
| Ce | N |
| Csa | Y |
| Current | 1.2 A |
| Drive End Bearing | Sleeve |
| Duty | Air Over |
| Electrical Type | Shaded Pole |
| Enclosure | Open Air Over |
| Frame | 3.3 |
| Frame Length | 2.68 in |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Insulation Class | B |
| Mounting | Lug |
| Number Of Speeds | 1 |
| Opp Drive End Bearing | Sleeve |
| Output Hp | 1/25 Hp |
| Output Kw | 0.03 kW |
| Overall Length | 5.54 in |
| Phase | 1 |
| Poles | 2 |
| Rotation | Counterclockwise Shaft End |
| Shaft Diameter | 0.313 in |
| Shaft Extension | 2.32 in |
| Shaft Type | Flat |
| Speed | 3000 rpm |
| Starting Method | Across The Line |
| Thermal Protection | Thermally Protected |
| Ul | Recognized |
| Voltage | 115 V |
| Ship weight (kg) | 1.53 |
| Ship height (cm) | 22.86 |
| Ship length (cm) | 16.51 |
| Ship width (cm) | 13.03 |
| Country of Origin | MX |
